螺牙规格：公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙。

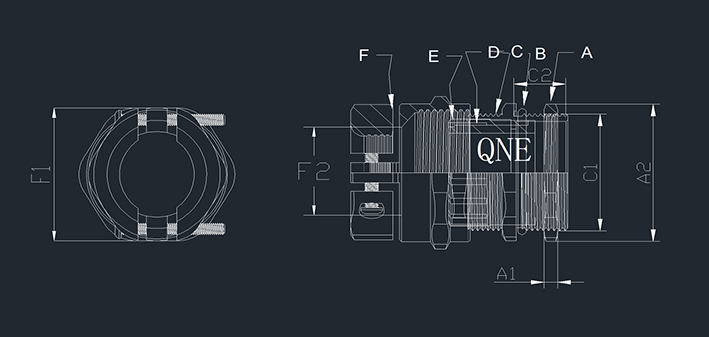

产品材质：A.C.F部分以黄铜镀镍制成，E部分以UL认可之尼龙PA66制成(防火等级UL94V-2),BD部分采用EPDM耐候橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
工作温度：静态-40℃至100℃,或瞬间可耐热至120℃;
产品特性：双重电缆紧固，适用于高拉扯环境（汽车充电桩及其他）
编号
Item.No. |
螺牙规格
Thread |
电缆范围
Cable Range
ФF2 (mm) |
螺纹外径
Thread O.D.C1
(mm) |
螺纹长度
Thread LengthC2
(mm) |
扳手径
Spanner SizeF1&A2
(mm) |
| QSSM-M12-8-S8 |
M12×1.5 |
4.5--8 |
12 |
8 |
17/14 |
| QSSM-M16S-8-S8 |
M16×1.5 |
4.5--8 |
16 |
8 |
17/18 |
| QSSM-M16-10-S10 |
M16×1.5 |
6--10 |
16 |
8 |
20/18 |
| QSSM-M18S-8-S8 |
M18×1.5 |
4.5--8 |
18 |
8 |
17/20 |
| QSSM-M18-10-S10 |
M18×1.5 |
6--10 |
18 |
8 |
20/20 |
| QSSM-M20M-10-S10 |
M20×1.5 |
6--10 |
20 |
8 |
17/22 |
| QSSM-M20S-12-S12 |
M20×1.5 |
7--12 |
20 |
8 |
22/22 |
| QSSM-M20-14-S14 |
M20×1.5 |
9--14 |
20 |
8 |
24/22 |
| QSSM-M22S-12-S12 |
M22×1.5 |
7--12 |
22 |
8 |
22/24 |
| QSSM-M22-14-S14 |
M22×1.5 |
9--14 |
22 |
8 |
24/24 |
| QSSM-M24S-14-S14 |
M24×1.5 |
9--14 |
24 |
9 |
24/27 |
| QSSM-M24-16-S16 |
M24×1.5 |
12--16 |
24 |
9 |
27/27 |
| QSSM-M25M-14-S14 |
M25×1.5 |
9--14 |
25 |
9 |
24/27 |
| QSSM-M25S-16-S16 |
M25×1.5 |
12--16 |
25 |
9 |
27/27 |
| QSSM-M25-18-S |
M25×1.5 |
14--18 |
25 |
9 |
30/27 |
| QSSM-M27-18-S |
M27×1.5 |
14--18 |
27 |
9 |
30/30 |
| QSSM-M30-22-S22 |
M30×1.5 |
14--18 |
30 |
9 |
30/35 |
| QSSM-M32S-18-S18 |
M32×1.5 |
14--18 |
32 |
10 |
30/35 |
| QSSM-M32-22-S22 |
M32×1.5 |
18--22 |
32 |
10 |
35/35 |
| QSSM-M32Z-25-S25 |
M32×1.5 |
20--25 |
32 |
10 |
40/35 |
| QSSM-M36-25-S25 |
M36×1.5 |
18--22 |
36 |
10 |
40/40 |
| QSSM-M40M-22-S22 |
M40×1.5 |
18--22 |
40 |
11 |
35/45 |
| QSSM-M40S-25-S25 |
M40×1.5 |
21--25 |
40 |
11 |
40/45 |
| QSSM-M40-30-S30 |
M40×1.5 |
24--30 |
40 |
11 |
45/45 |
| QSSM-M50-33-S33 |
M50×1.5 |
25--33 |
50 |
13 |
50/55 |
| QSSM-M50-38-S38 |
M50×1.5 |
32--38 |
50 |
13 |
57/55 |
| QSSM-M60-44-S44 |
M60×1.5 |
37-44 |
60 |
14 |
64/68 |
| QSSM-M63-44-S44 |
M63×1.5 |
37-44 |
63 |
14 |
64/68 |
编号
Item.No. |
螺牙规格
Thread |
电缆范围
Cable Range
Ф (mm) |
螺纹外径
Thread O.D.C1
(mm) |
螺纹长度
Thread LengthC2
(mm) |
扳手径
Spanner SizeA&F
(mm) |
| QSSM-PG7-8-S8 |
PG7 |
4.5--8 |
12.5 |
8 |
17/14 |
| QSSM-PG9-8-S8 |
PG9 |
4.5-8 |
15.2 |
8 |
17/18 |
| QSSM-PG11-10-S10 |
PG11 |
6--10 |
18.6 |
8 |
20/22 |
| QSSM-PG13.5-12-S12 |
PG13.5 |
7--12 |
20.4 |
8 |
22/24 |
| QSSM-PG16-14-S14 |
PG16 |
9--14 |
22.5 |
8 |
24/25 |
| QSSM-PG19-14-S14 |
PG19 |
9--14 |
24 |
9 |
24/27 |
| QSSM-PG19-16-S16 |
PG19 |
12--16 |
24 |
9 |
27/27 |
| QSSM-PG21-16-S16 |
PG21 |
12--16 |
28.3 |
9 |
27/30 |
| QSSM-PG21-18-S18 |
PG21 |
14--18 |
28.3 |
9 |
30/30 |
| QSSM-PG25-18-S18 |
PG25 |
14--18 |
30 |
10 |
30/35 |
| QSSM-PG25-22-S22 |
PG25 |
18--22 |
30 |
10 |
35/35 |
| QSSM-PG29-22-S22 |
PG29 |
16--22 |
37 |
10 |
35/40 |
| QSSM-PG29-25-S25 |
PG29 |
18--25 |
37 |
10 |
40/40 |
| QSSM-PG36-30-S30 |
PG36 |
24--30 |
47 |
11 |
45/50 |
| QSSM-PG36-33-S33 |
PG36 |
25--33 |
47 |
11 |
50/50 |
| QSSM-PG42-33-S33 |
PG42 |
25--33 |
54 |
13 |
50/57 |
| QSSM-PG42-38-S38 |
PG42 |
32--38 |
54 |
13 |
57/57 |
| QSSM-PG48-44-S44 |
PG48 |
37--44 |
59.3 |
14 |
64/64 |
|
