| 产品名称： |

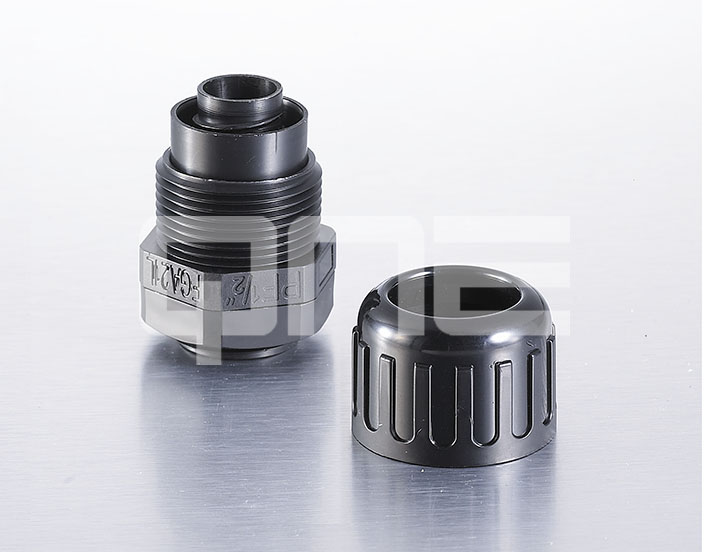

PA金属软管(蛇管）接头 |
|
尼龙材质金属软管接头
·螺牙规格: 公制牙 ( Metric )、G(PF / BSP / PS)牙及PG牙。
·产品材质: UL 认可之尼龙PA66 制成 ( 防火等级 UL 94V-2 )。
·颜色种类: 黑色及灰色。
·工作温度: 静态-40℃至100℃,或瞬间可耐热至120
·适用范围: 可结合自 5/16" 到 2" 之被覆金属蛇管规格使用。
|
|
适配金属软管
Accommodated Pipes
|
编号Item No
|
螺牙规格
Standard Thread
|
螺纹外径
Outer Diameter
|
螺纹长度Thread Length
|
包装Std Pk
|
|
5/16”管
|
SJSSGJ-M16-AD15.8-ST
|
M16 x 1.5
|
16
|
10
|
50
|
|
SJSSGJ-M16-AD15.8
|
M16 x 1.5
|
16
|
15
|
50
|
|
3/8”管
|
SJSSGJ-M16-AD15.8-ST
|
M16 x 1.5
|
16
|
10
|
50
|
|
SJSSGJ-M16-AD15.8
|
M16 x 1.5
|
16
|
15
|
50
|
|
1/2”管
|
SJSSGJ-M20-AD21.2-ST
|
M20 x 1.5
|
20
|
10
|
50
|
|
SJSSGJ-M20-AD21.2
|
M20 x 1.5
|
20
|
15
|
50
|
|
3/4”管
|
SJSSGJ-M25-AD26.2-ST
|
M25 x 1.5
|
25
|
10
|
50
|
|
SJSSGJ-M25-AD26.2
|
M25 x 1.5
|
25
|
15
|
50
|
|
1”管
|
SJSSGJ-M32-AD34.5-ST
|
M32 x 1.5
|
32
|
10
|
20
|
|
SJSSGJ-M32-34.5
|
M32 x 1.5
|
32
|
15
|
20
|
|
1 1/4”管
|
SJSSGJ-M40-AD42.5
|
M40 x 1.5
|
40
|
15
|
10
|
|
1 1/2”管
|
SJSSGJ-M50-AD48
|
M50 x 1.5
|
50
|
15
|
10
|
|
2”管
|
SJSSGJ-M63-AD54.5
|
M63x 1.5
|
63
|
25
|
10
|
适配金属软管
Accommodated Pipes
|
编号Item No
|
螺牙规格
Standard Thread
|
螺纹外径
Outer Diameter
|
螺纹长度Thread Length
|
包装Std Pk
|
|
5/16”管
|
SJSSGJ-PG16-15.8
|
PG16
|
22.5
|
10.8
|
50
|
|
3/8”管
|
SJSSGJ-PG16-15.8
|
PG16
|
22.5
|
10.8
|
50
|
|
1/2”管
|
SJSSGJ-PG16-21.2
|
PG16
|
22.5
|
13
|
50
|
|
3/4”管
|
SJSSGJ-PG21-28.5
|
PG21
|
28.3
|
13
|
50
|
|
1”管
|
SJSSGJ-PG29-34.5
|
PG29
|
37
|
13
|
20
|
适配金属软管
Accommodated Pipes
|
编号Item No
|
螺牙规格
Standard Thread
|
螺纹外径
Outer Diameter
|
螺纹长度Thread Length
|
包装Std Pk
|
|
5/16”管
|
SJSSGJ-PF1/2-15.8
|
G(PF)1/2
|
20.9
|
15
|
50
|
|
3/8”管
|
SJSSGJ-PF1/2-18.5
|
G(PF)1/2
|
20.9
|
15
|
50
|
|
1/2”管
|
SJSSGJ-PF1/2-21.2
|
G(PF)1/2
|
20.9
|
15
|
50
|
|
3/4”管
|
SJSSGJ-PF3/4-28.5
|
G(PF)3/4
|
26.4
|
15
|
50
|
|
1”管
|
SJSSGJ-PF1-34.5
|
G(PF)1
|
33.2
|
15
|
20
|
|
1 1/4”管
|
SJSSGJ-PF1 1/4-42.5
|
G(PF)1 1/4
|
41.9
|
15
|
10
|
|
1 1/2”管
|
SJSSGJ-PF1 1/2-48
|
G(PF)1 1/2
|
48
|
15
|
10
|
|
2”管
|
SJSSGJ-PF2-54.5
|
G(PF)2
|
60
|
15
|
10
|
|
|
|
