产品名称: |
多孔及扁孔型电缆固定头 |
|
|
·螺牙规格:公制牙(Metric)
·产品才质:A.C.E.F 部分以UL认可之尼龙PA66制成(防火等级UL94V-2),B及D部分采用EPDM耐候橡胶制成。
·颜色种类:黑色及灰色。
·工作温度:-40℃至100℃。
·产品特性:特殊夹紧爪与夹紧圈之设计,夹紧电缆范围大,抗拉力特强,可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
·多样出孔:有2~8也电源、电缆专用之出线设计,使每一个别之电缆得到****之防水绝缘效果,且不致相互纠缠。
|

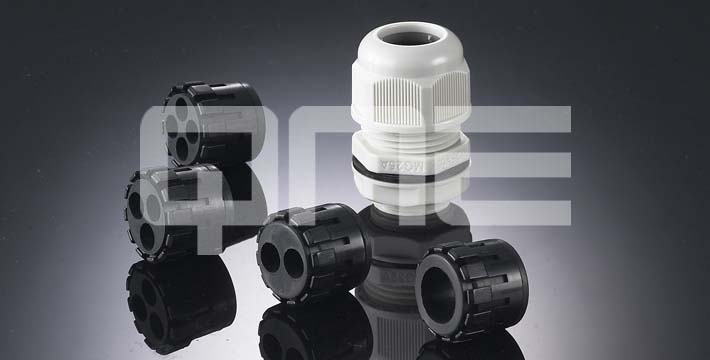

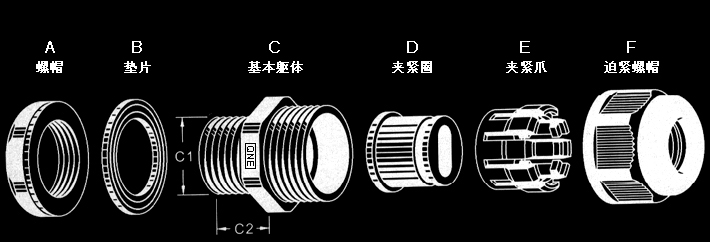

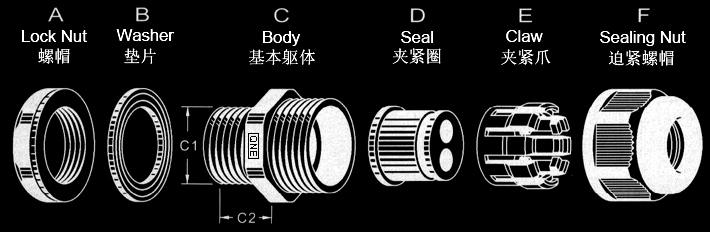

夹紧圈形状
Seal Holes
|
螺牙规格
Thread
|
编号
Cat No.
|
通用电缆
Cable RangeФ
|
螺纹外径
Thread 0.D.
C1
|
机板口径
Panel Mounting Hole
|
螺纹长度
Thread Length
C2
|
扳手径
Spanner Size
A & F
|
包装
Std.Pkg.
pcs
|
黑色(Black)
|
灰色(Gray)
|
|
M12×1.5
|
MG12A-H2-03B
|
MG12A-H2-03G
|
3~1.2
|
12
|
12~12.3
|
9
|
18/19
|
50
|
M16×1.5
|
MG16A-H2-04B
|
MG16A-H2-04G
|
4~1.6
|
16
|
16~16.3
|
15
|
22/22
|
50
|
M20×1.5
|
MG20A-H2-03B
|
MG20A-H2-03G
|
3.5~2
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M20×1.5
|
MG20A-H2-O6B
|
MG20A-H2-06G
|
6~2.5
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M25×1.5
|
MG25A-H2-05B
|
MG25A-H2-05G
|
5~2
|
25
|
25~25.4
|
15
|
33/33
|
50
|
M25×1.5
|
MG25A-H2-08B
|
MG25A-H2-08G
|
8.7~4.5
|
25
|
25~25.4
|
15
|
33/33
|
50
|
M32×1.5
|
MG32A-H2-10B
|
MG32A-H2-10G
|
10~5
|
32
|
32~32.4
|
15
|
41/41
|
10
|
|
M12×1.5
|
MG12A-H3-02B
|
MG12A-H3-02G
|
2.6~1.2
|
12
|
12~12.3
|
9
|
18/19
|
50
|
M16×1.5
|
MG16A-H3-04B
|
MG16A-H3-04G
|
4~1.6
|
16
|
16~16.3
|
15
|
22/22
|
50
|
M20×1.5
|
MG20A-H3-03B
|
MG20A-H3-03G
|
3.5~1.5
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M20×1.5
|
MG20A-H3-05B
|
MG20A-H3-05G
|
5~2
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M25×1.5
|
MG25A-H3-05B
|
MG25A-H3-05G
|
5~2
|
25
|
25~25.4
|
15
|
33/33
|
50
|
M25×1.5
|
MG25A-H3-08B
|
MG25A-H3-08G
|
8~4
|
25
|
25~25.4
|
15
|
33/33
|
50
|
M32×1.5
|
MG32A-H3-10B
|
MG32A-H3-10G
|
10~5
|
32
|
32~32.4
|
15
|
41/41
|
10
|
|
M12×1.5
|
MG12A-H4-02B
|
MG12A-H4-02G
|
2.3~1
|
12
|
12~12.3
|
9
|
18/19
|
50
|
M16×1.5
|
MG16A-H4-03B
|
MG16A-H4-03G
|
3~1.2
|
16
|
16~16.3
|
15
|
22/22
|
50
|
M20×1.5
|
MG20A-H4-03B
|
MG20A-H4-03G
|
3.5~1.5
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M20×1.5
|
MG20A-H4-04B
|
MG20A-H4-04G
|
4.5~2
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M25×1.5
|
MG25A-H4-05B
|
MG25A-H4-05G
|
5~2
|
25
|
25~25.4
|
15
|
33/33
|
50
|
M25×1.5
|
MG25A-H4-07B
|
MG25A-H4-07G
|
7~3.5
|
25
|
25~25.4
|
15
|
33/33
|
50
|
M32×1.5
|
MG32A-H4-09B
|
MG32A-H4-09G
|
9~4.5
|
32
|
32~32.4
|
15
|
41/41
|
10
|
|
M16×1.5
|
MG16A-H5-02B
|
MG16A-H5-02G
|
2.5~1
|
16
|
16~16.3
|
15
|
22/22
|
50
|
M20×1.5
|
MG20A-H5-03B
|
MG20A-H5-03G
|
3~1.2
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M20×1.5
|
MG20A-H5-04B
|
MG20A-H5-04G
|
4.2~1.7
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M25×1.5
|
MG25A-H5-03B
|
MG25A-H5-03G
|
3.5~1.5
|
25
|
25~25.4
|
15
|
33/33
|
50
|
M25×1.5
|
MG25A-H5-06B
|
MG25A-H5-06G
|
6~3
|
25
|
25~25.4
|
15
|
33/33
|
50
|
M32×1.5
|
MG32A-H5-08B
|
MG32A-H5-08G
|
8~4
|
32
|
32~32.4
|
15
|
41/41
|
10
|
|
M16×1.5
|
MG16A-H6-02B
|
MG16A-H6-02G
|
2~1
|
16
|
16~16.3
|
15
|
22/22
|
50
|
M20×1.5
|
MG20A-H6-03B
|
MG20A-H6-03G
|
3~1.2
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M25×1.5
|
MG25A-H6-03B
|
MG25A-H6-03G
|
3.5~1.5
|
25
|
25~25.4
|
15
|
33/33
|
50
|
M25×1.5
|
MG25A-H6-05B
|
MG25A-H6-05G
|
5.3~2.4
|
25
|
25~25.4
|
15
|
33/33
|
50
|
M32×1.5
|
MG32A-H6-07B
|
MG32A-H6-07G
|
7~3.5
|
32
|
32~32.4
|
15
|
41/41
|
10
|
|
M20×1.5
|
MG20A-H7-03B
|
MG20A-H7-03G
|
3~1.2
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M25×1.5
|
MG25A-H7-03B
|
MG25A-H7-03G
|
3.5~1.5
|
25
|
25~25.4
|
15
|
33/33
|
50
|
M32×1.5
|
MG32A-H7-06B
|
MG32A-H7-06G
|
6~3
|
32
|
32~32.4
|
15
|
41/41
|
10
|
|
M20×1.5
|
MG20A-H8-02B
|
MG20A-H8-02G
|
2.8~1
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M25×1.5
|
MG25A-H8-03B
|
MG25A-H8-03G
|
3.5~1.5
|
25
|
25~25.4
|
15
|
33/33
|
50
|
|
M16×1.5
|
MG16A-0610B
|
MG16A-06106
|
6×10
|
16
|
16~16.3
|
15
|
22/22
|
50
|
M20×1.5
|
MG20A-06128
|
MG20A-06126
|
6.5×12
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M20×1.5
|
MG20A-06148
|
MG20A-06146
|
6×14
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M20×1.5
|
MG20A-07128
|
MG20A-07126
|
7×12
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M20×1.5
|
MG20A-07148
|
MG20A-07146
|
7×14
|
20
|
20~20.3
|
15
|
27/27
|
50
|
M25×1.5
|
MG25A-06148
|
MG25A-06146
|
6×14
|
25
|
25~25.4
|
15
|
33/33
|
50
|
M25×1.5
|
MG25A-0714B
|
MG25A-07146
|
7×14
|
25
|
25~25.4
|
15
|
33/33
|
50
|
M32×1.5
|
MG32A-0822B
|
MG32A-08226
|
8×22
|
32
|
32~32.4
|
15
|
41/41
|
10
|
M40×1.5
|
MG40A-10288
|
MG40A-10286
|
10×28.5
|
40
|
40~40.3
|
20
|
50/50
|
10
|
M40×1.5
|
MG40A-0529B
|
MG40A-05296
|
5.5×29
|
40
|
40~40.3
|
20
|
50/50
|
10
|
|
|
|
