| 产品名称： |

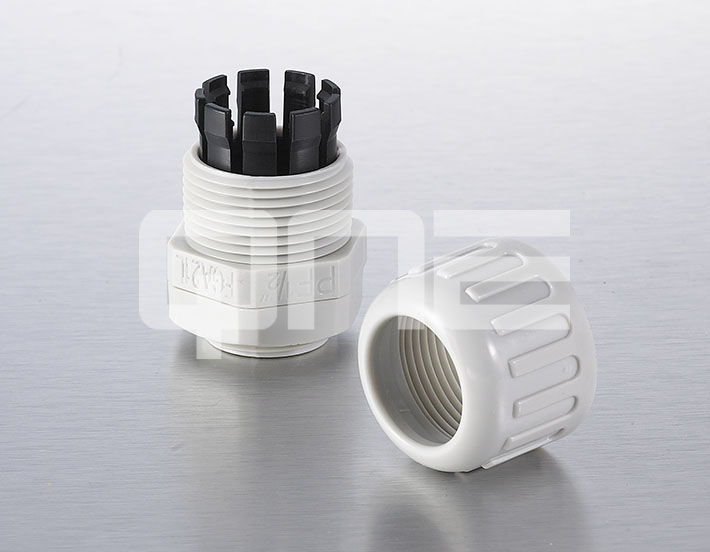

高拉力波纹管（浪管）接头-专利产品 |
|
|
·螺牙规格: 公制牙(Metric)、PG牙、G（PF）牙、NPT牙。

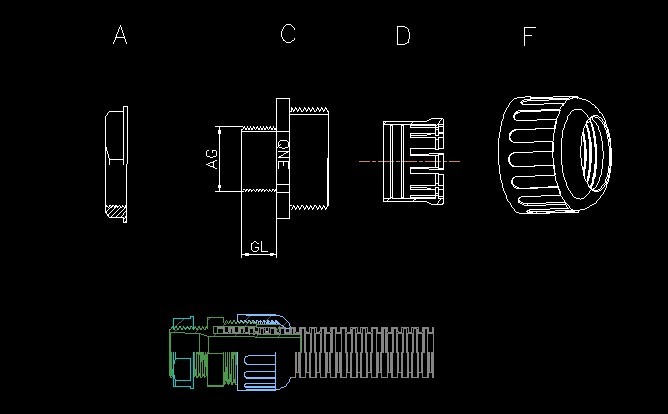

·产品材质: A.C.D.F部分采用UL认可之无卤素（Halogen-Free）尼龙PA66(防火等级UL94V-2)制成;(可定制UL认可的V-0防火等级尼龙原料);
·保护等级: IP68
·工作温度: 静态-40℃至100℃,或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃.
·产品特性: 本款高性能抗拉型浪管接头，适合不同材质，不同硬度浪管
·颜色种类: 黑色、灰色，其它颜色可定做。
高拉力浪管接头（抗强拉力，快速安装）
|
适配软管
|
编号
|
螺牙规格
|
螺纹外径
|
螺纹长度
|
包装
|
|
Accommodated Pipes
|
Item.No.
|
Thread
|
AG Outer diameter
|
Thread Length
|
Std.Pkg
|
|
|
|
|
(mm)
|
GL(mm)
|
(pcs)
|
|
|
|
|
|
|
|
|
AD10.0
|
STF-M12-10.0
|
M12 x 1.5
|
12
|
9
|
50
|
|
|
STF-M16-10.0-ST
|
M16 x 1.5
|
16
|
10
|
50
|
|
AD13.0
|
STF-M16-13.0-ST
|
M16 x 1.5
|
16
|
10
|
50
|
|
|
STF-M16-13.0
|
M16 x 1.5
|
16
|
15
|
50
|
|
AD15.8
|
STF-M16-15.8-ST
|
M16 x 1.5
|
16
|
10
|
50
|
|
|
STF-M16-15.8
|
M16 x 1.5
|
16
|
15
|
50
|
|
|
STF-M20-15.8-ST
|
M20 x 1.5
|
20
|
10
|
50
|
|
|
STF-M20-15.8
|
M20 x 1.5
|
20
|
15
|
50
|
|
|
STF-M22-15.8-ST
|
M22 x 1.5
|
22
|
10
|
50
|
|
|
STF-M22-15.8
|
M22 x 1.5
|
22
|
15
|
50
|
|
|
STF-M25-15.8-ST
|
M25 x 1.5
|
25
|
12
|
50
|
|
AD18.5
|
STF-M16-18.5-ST
|
M16 x 1.5
|
16
|
10
|
50
|
|
|
STF-M16-18.5
|
M16 x 1.5
|
16
|
15
|
50
|
|
|
STF-M20-18.5-ST
|
M20 x 1.5
|
20
|
10
|
50
|
|
|
STF-M20-18.5
|
M20 x 1.5
|
20
|
15
|
50
|
|
|
STF-M22-18.5-ST
|
M22 x 1.5
|
22
|
10
|
50
|
|
|
STF-M22-18.5
|
M22 x 1.5
|
22
|
15
|
50
|
|
|
STF-M25-18.5-ST
|
M25 x 1.5
|
25
|
12
|
50
|
|
AD21.2
|
STF-M20-21.2-ST
|
M20 x 1.5
|
20
|
10
|
50
|
|
|
STF-M20-21.2
|
M20 x 1.5
|
20
|
15
|
50
|
|
|
STF-M25-21.2-ST
|
M25 x 1.5
|
25
|
10
|
50
|
|
|
STF-M25-21.2
|
M25 x 1.5
|
25
|
15
|
50
|
|
AD25.0
|
STF-M25-25.0-ST
|
M25 x 1.5
|
25
|
10
|
50
|
|
|
STF-M25-25.0
|
M25 x 1.5
|
25
|
15
|
50
|
|
AD26.2
|
STF-M25-26.2-ST
|
M25 x 1.5
|
25
|
10
|
50
|
|
|
STF-M25-26.2
|
M25 x 1.5
|
25
|
15
|
50
|
|
AD28.5
|
STF-M25-28.5-ST
|
M25 x 1.5
|
25
|
10
|
50
|
|
|
STF-M25-28.5
|
M25 x 1.5
|
25
|
15
|
50
|
|
AD34.5
|
STF-M32-34.5-ST
|
M32 x 1.5
|
32
|
10
|
20
|
|
|
STF-M32-34.5
|
M32 x 1.5
|
32
|
15
|
20
|
|
AD42.5
|
STF-M40-42.5
|
M40 x 1.5
|
40
|
15
|
10
|
|
|
STF-M50-42.5
|
M50 x 1.5
|
40
|
15
|
10
|
|
AD48
|
STF-M50-48
|
M50 x 1.5
|
50
|
22
|
10
|
|
AD54.5
|
STF-M50-54.5
|
M50 x 1.5
|
50
|
22
|
10
|
|
|
STF-M63-54.5
|
M63 x 1.5
|
63
|
25
|
10
|
|
AD60
|
STF-M50-60
|
M50 x 1.5
|
50
|
22
|
10
|
|
|
STF-M63-60
|
M63 x 1.5
|
63
|
25
|
10
|
|
AD10.0
|
STF-PG7-10.0
|
PG7
|
12.5
|
9
|
50
|
|
|
STF-PG9-10.0
|
PG9
|
15.2
|
9
|
50
|
|
AD13.0
|
STF-PG11-13.0
|
PG11
|
18.6
|
10
|
50
|
|
AD15.8
|
STF-PG13.5-15.8
|
PG13.5
|
20.4
|
10
|
50
|
|
|
STF-PG16-15.8
|
PG16
|
22.5
|
10.8
|
50
|
|
AD18.5
|
STF-PG13.5-18.5
|
PG13.5
|
20.4
|
10
|
50
|
|
|
STF-PG16-18.5
|
PG16
|
22.5
|
10.8
|
50
|
|
AD21.2
|
STF-PG16-21.2
|
PG16
|
22.5
|
13
|
50
|
|
|
STF-PG21-21.2
|
PG21
|
28.3
|
13
|
50
|
|
AD26.2
|
STF-PG21-26.2
|
PG21
|
28.3
|
13
|
50
|
|
AD28.5
|
STF-PG21-28.5
|
PG21
|
28.3
|
13
|
50
|
|
AD34.5
|
STF-PG29-34.5
|
PG29
|
37
|
13
|
20
|
|
AD42.5
|
STF-PG36-42.5
|
PG36
|
47
|
13
|
10
|
|
AD48
|
STF-PG42-48
|
PG42
|
59.3
|
16
|
10
|
|
AD54.5
|
STF-PG48-54.5
|
PG48
|
59.3
|
16
|
10
|
|
AD60
|
STF-PG48-54.5
|
PG48
|
59.3
|
16
|
10
|
|
|
|
|
|
|
|
|
AD10.0
|
STF-1/4-10.0
|
PF 1/4”
|
13.1
|
9
|
50
|
|
AD13.0
|
STF-PF3/8-13.0
|
PF 3/8”
|
16.6
|
15
|
50
|
|
AD15.8
|
STF-PF1/2-15.8
|
PF 1/2”
|
20.9
|
15
|
50
|
|
AD18.5
|
STF-PF1/2-18.5
|
PF 1/2”
|
20.9
|
15
|
50
|
|
AD21.2
|
STF-PF1/2-21.2
|
PF 1/2”
|
20.9
|
15
|
50
|
|
|
STF-PF3/4-21.2
|
PF 3/4”
|
26.4
|
15
|
50
|
|
AD26.2
|
STF-PF3/4-26.2
|
PF 3/4”
|
26.4
|
15
|
50
|
|
AD28.5
|
STF-PF3/4-28.5
|
PF 3/4”
|
26.4
|
15
|
50
|
|
AD34.5
|
STF-PF1-34.5
|
PF 1”
|
33.2
|
15
|
20
|
|
AD42.5
|
STF-PF1 1/4-42.5
|
PF1 1/4”
|
41.9
|
15
|
10
|
|
AD54.5
|
STF-PF1 1/2-54.5
|
PF1 1/2”
|
48
|
15
|
10
|
|
|
STF-PF2-54.5
|
PF 2”
|
60
|
15
|
10
|
|
AD60
|
STF-PF1 1/2-60
|
PF1 1/2”
|
48
|
15
|
10
|
|
|
STF-PF2-60
|
PF 2”
|
60
|
15
|
10
|
|
|
|
