| 产品名称： |

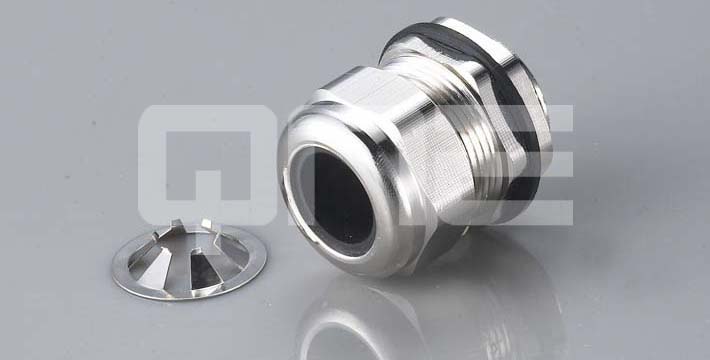

EMC防磁波BCG黄铜电缆固定头 |
|
·螺牙规格：公制牙（Metric）
·产品才质：A.C1.E.F 部分以铜合金镀镍制成，E 部分以UL认可之尼龙PA66制成（防火等级UL 94V-2），B及D部分采用EPDM耐候橡胶制成。
·颜色种类：金属色。
·工作温度：-40℃至100℃。
·产品特性：特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
·产品用途：本产品经特殊设计，在使用隔离线电缆时，可使用低压电磁波降低减弱。
|
|
|
|

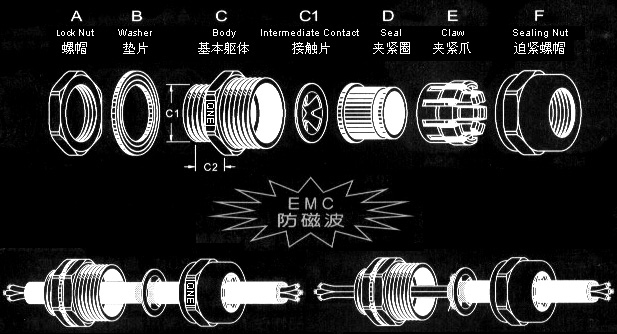

夹紧圈形状
Seal Holes
|
螺牙规格
Thread
|
编号
Cat No.
|
通用电缆
Cable RangeФ
|
螺纹外径
Thread 0.D.
C1
|
机板口径
Panel Mounting Hole
|
螺纹长度
Thread Length
C2
|
扳手径
Spanner Size
A & F
|
包装
Std.Pkg.
pcs
|
|
|
M12×1.5
|
EMC-MBA12 -05
|
5.3~3
|
12
|
12~12.3
|
8
|
17/17
|
10
|
|
M12×1.5
|
EMC-MBA12 -08
|
8~4.5
|
12
|
12~12.3
|
8
|
17/17
|
10
|
|
M16×1.5
|
EMC-MBA16 -06
|
7~4
|
16
|
16~16.3
|
9
|
22/22
|
10
|
|
M16×1.5
|
EMC-MBA16 -10
|
10~6
|
16
|
16~16.3
|
9
|
22/22
|
10
|
|
M20×1.5
|
EMC-MBA20M -08
|
8.8~5
|
20
|
20~20.3
|
9.
|
24/24
|
10
|
|
M20×1.5
|
EMC-MBA20M -11
|
12~7
|
20
|
20~20.3
|
59.5
|
24/24
|
10
|
|
M20×1.5
|
EMC-MBA20 -10
|
11~6
|
20
|
20~20.3
|
9.5
|
26/26
|
10
|
|
M20×1.5
|
EMC-MBA20 -13
|
14~9
|
20
|
20~20.3
|
9.5
|
26/26
|
10
|
|
M25×1.5
|
EMC-MBA25 -16
|
16~10
|
25
|
25~25.4
|
12
|
32/32
|
10
|
|
M25×1.5
|
EMC-MBA25 -18
|
18~13
|
25
|
25~25.4
|
12
|
32/32
|
10
|
|
M32×1.5
|
EMC-MBA32 -22
|
22~15
|
32
|
32~32.4
|
12.5
|
41/41
|
10
|
|
M32×1.5
|
EMC-MBA32 -25
|
25~18
|
32
|
32~32.4
|
12.5
|
41/41
|
10
|
|
M40×1.5
|
EMC-MBA40 -25
|
25~20
|
40
|
40~40.4
|
15
|
50/50
|
5
|
|
M40×1.5
|
EMC-MBA40 -30
|
30~24
|
40
|
40~40.4
|
15
|
50/50
|
5
|
|
M50×1.5
|
EMC-MBA50 -32
|
32~26
|
50
|
50~50.4
|
15
|
60/60
|
2
|
|
M50×1.5
|
EMC-MBA50 -39
|
40~30
|
50
|
50~50.4
|
15
|
60/60
|
2
|
|
M63×1.5
|
EMC-MBA63 -46
|
46~38
|
63
|
63~63.4
|
15
|
73/73
|
2
|
|
M63×1.5
|
EMC-MBA63 -49
|
50~40
|
63
|
63~63.4
|
15
|
73/73
|
2
|
|
G1/4
|
EMC-FBA13 -05
|
5.3~3
|
13.1
|
13.1~13.4
|
8
|
17/17
|
10
|
|
G1/4
|
EMC-FBA13 -08
|
8~4.5
|
13.1
|
13.1~13.4
|
8
|
17/17
|
10
|
|
G3/8
|
EMC-FBA17 -06
|
7~4
|
16.6
|
16.6~16.9
|
9
|
22/22
|
10
|
|
G3/8
|
EMC-FBA17 -10
|
10~6
|
16.6
|
16.6~16.9
|
9
|
22/22
|
10
|
|
G1/2
|
EMC-FBA21 -10
|
11~6
|
20.9
|
20.9~21.2
|
9.5
|
26/26
|
10
|
|
G1/2
|
EMC-FBA21 -13
|
14~9
|
20.9
|
20.9~21.2
|
9.5
|
26/26
|
10
|
|
G3/4
|
EMC-FBA26 -16
|
16~10
|
26.4
|
26.4~26.8
|
12
|
32/32
|
10
|
|
G3/4
|
EMC-FBA26 -18
|
18~13
|
26.4
|
26.4~26.8
|
12
|
32/32
|
10
|
|
G1
|
EMC-FBA33 -22
|
22~15
|
33.2
|
33.2~33.6
|
12.5
|
41/41
|
10
|
|
G1
|
EMC-FBA33 -25
|
25~18
|
33.2
|
33.2~33.6
|
12.5
|
41/41
|
10
|
|
G1 1/4
|
EMC-FBA42 -25
|
25~20
|
41.9
|
41.9~42.3
|
15
|
50/50
|
5
|
|
G1 1/4
|
EMC-FBA42 -30
|
30~24
|
41.9
|
41.9~42.3
|
15
|
50/50
|
5
|
|
G1 1/2
|
EMC-FBA48 -32
|
32~26
|
48
|
48~48.4
|
15
|
60/60
|
2
|
|
G1 1/2
|
EMC-FBA48 -39
|
40~30
|
48
|
48~48.4
|
15
|
60/60
|
2
|
|
G2
|
EMC-FBA60 -46
|
46~38
|
60
|
60~60.4
|
15
|
73/73
|
2
|
|
G2
|
EMC-FBA60 -49
|
50~40
|
60
|
60~60.4
|
15
|
73/73
|
2
|
|
PG 7
|
EMC-PBA7 -05
|
5.3~3
|
12.5
|
12.5~12.8
|
8
|
17/17
|
10
|
|
PG 7
|
EMC-PBA7 -08
|
8~4.5
|
12.5
|
12.5~12.8
|
8
|
17/17
|
10
|
|
PG 9
|
EMC-PBA9 -05
|
5.3~3
|
15.2
|
15.2~15.5
|
8
|
18/17
|
10
|
|
PG 9
|
EMC-PBA9 -08
|
8~4.5
|
15.2
|
15.2~15.5
|
8
|
18/17
|
10
|
|
PG 11
|
EMC-PBA11 -06
|
7~4
|
18.6
|
18.6~18.9
|
9
|
22/22
|
10
|
|
PG 11
|
EMC-PBA11 -10
|
10~6
|
18.6
|
18.6~18.9
|
9
|
22/22
|
10
|
|
PG 13.5
|
EMC-PBA13.5-08
|
8.8~5
|
20.4
|
20.4~20.7
|
9.5
|
24/24
|
10
|
|
PG 13.5
|
EMC-PBA13.5-11
|
12~7
|
20.4
|
20.4~20.7
|
9.5
|
24/24
|
10
|
|
PG 16
|
EMC-PBA16 -10
|
11~6
|
22.5
|
22.5~22.8
|
9.5
|
26/26
|
10
|
|
PG 16
|
EMC-PBA16 -13
|
14~9
|
22.5
|
22.5~22.8
|
9.5
|
26/26
|
10
|
|
PG 21
|
EMC-PBA21 -16
|
16~10
|
28.3
|
28.3~28.7
|
12
|
32/32
|
10
|
|
PG 21
|
EMC-PBA21 -18
|
18~13
|
28.3
|
28.3~28.7
|
12
|
32/32
|
10
|
|
PG 29
|
EMC-PBA29 -22
|
22~15
|
37
|
37~37.4
|
12.5
|
41/41
|
10
|
|
PG 29
|
EMC-PBA29 -25
|
25~18
|
37
|
37~37.4
|
12.5
|
41/41
|
10
|
|
PG 36
|
EMC-PBA36 -25
|
25~20
|
47
|
47~47.4
|
15
|
50/50
|
5
|
|
PG 36
|
EMC-PBA36 -30
|
30~24
|
47
|
47~47.4
|
15
|
50/50
|
5
|
|
NPT 3/8
|
EMC-NBA17 -06
|
7~4
|
17.1
|
-
|
13
|
22
|
10
|
|
NPT 3/8
|
EMC-NBA17 -10
|
10~6
|
17.1
|
-
|
13
|
22
|
10
|
|
NPT 1/2
|
EMC-NBA21 -10
|
11~6
|
21.3
|
-
|
13
|
26
|
10
|
|
NPT 1/2
|
EMC-NBA21 -13
|
14~9
|
21.3
|
-
|
13
|
26
|
10
|
|
NPT 3/4
|
EMC-NBA26 -16
|
16~10
|
26.6
|
-
|
14
|
32
|
10
|
|
NPT 3/4
|
EMC-NBA26 -18
|
18~13
|
26.6
|
-
|
14
|
32
|
10
|
|
NPT 1
|
EMC-NBA33 -22
|
22~15
|
33.5
|
-
|
15
|
41
|
10
|
|
NPT 1
|
EMC-NBA33 -25
|
25~18
|
33.5
|
-
|
15
|
41
|
10
|
|
NPT 1 1/4
|
EMC-NBA42 -25
|
25~20
|
42.2
|
-
|
15
|
50
|
5
|
|
NPT 1 1/4
|
EMC-NBA42 -30
|
30~24
|
42.2
|
-
|
15
|
50
|
5
|
|
|
|
