·螺牙规格: 公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙。

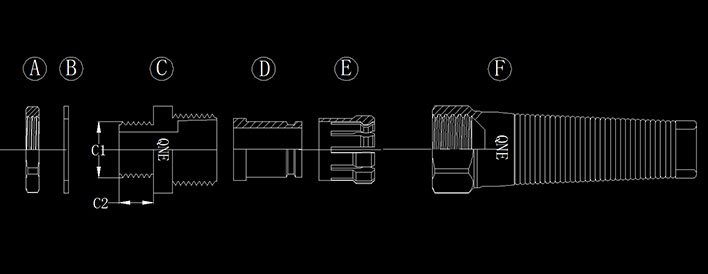

·产品材质: A.C.F部分以黄铜镀镍制成,E部分以UL认可之尼龙PA66制成(防火等级UL94V-2),BD部分采用EPDM耐候橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
·工作温度: 静态-40℃至100℃,或瞬间可耐热至120℃;(可定制-60℃至220℃)
·产品特性: 特殊夹紧爪与夹紧圈之设计,夹紧电缆范围大,抗拉力特强,可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
|
螺牙规格
Thread
|
编号
Item.No.
|
电缆范围
Cable Range Ф
(mm)
|
螺纹外径
Thread O.D.C1
(mm)
|
螺纹长度
Thread LengthC2
(mm)
|
扳手径
Spanner SizeA&F
(mm)
|
包装
Std.Pkg
(pcs)
|
M12 x1.5
|
NBCG-M12S-6.5
|
3-6.5
|
12
|
7
|
14/14
|
20
|
NBCG-M12 -5.5
|
3-5.5
|
12
|
8
|
17/17
|
10
|
NBCG-M12 -7.8
|
4.5-8
|
12
|
8
|
17/17
|
10
|
NBCG-M12S-5.5-L
|
3-6.5
|
12
|
15
|
14/14
|
20
|
NBCG-M12 -5.5-L
|
3-5.5
|
12
|
15
|
17/17
|
10
|
NBCG-M12 -7.8-L
|
4.5-8
|
12
|
15
|
17/17
|
10
|
M16 x 1.5
|
NBCG-M16S-5.5
|
3-5.5
|
16
|
8
|
17/18
|
10
|
NBCG-M16S-7.8
|
4.5-8
|
16
|
8
|
17/18
|
10
|
NBCG-M16 -7
|
4-7
|
16
|
8
|
22/22
|
10
|
NBCG-M16 -10
|
6-10
|
16
|
8
|
22/22
|
10
|
NBCG-M16S-5.5-L
|
3-5.5
|
16
|
15
|
17/18
|
10
|
NBCG-M16S-7.8-L
|
4.5-8
|
16
|
15
|
17/18
|
10
|
NBCG-M16 -7-L
|
4-7
|
16
|
15
|
22/22
|
10
|
NBCG-M16 -10-L
|
6-10
|
16
|
15
|
22/22
|
10
|
M20 x 1.5
|
NBCG-M20S-8.8
|
4-8.8
|
20
|
9.5
|
24/24
|
10
|
NBCG-M20S-12.5
|
7-12.5
|
20
|
9.5
|
24/24
|
10
|
NBCG-M20 -11
|
7-11
|
20
|
9.5
|
25/25
|
10
|
NBCG-M20 -14
|
9-14
|
20
|
9.5
|
25/25
|
10
|
NBCG-M20S-8.8-L
|
4-8.8
|
20
|
15
|
24/24
|
10
|
NBCG-M20S-12.5-L
|
7-12.5
|
20
|
15
|
24/24
|
10
|
NBCG-M20 -11-L
|
7-11
|
20
|
15
|
25/25
|
10
|
NBCG-M20 -14-L
|
9-14
|
20
|
15
|
25/25
|
10
|
M25 x 1.5
|
NBCG-M25S-11
|
7-11
|
25
|
12
|
25/25
|
10
|
NBCG-M25S-14
|
9-14
|
25
|
12
|
25/25
|
10
|
NBCG-M25 -16
|
12-16
|
25
|
12
|
30/30
|
10
|
NBCG-M25 -18
|
14-18
|
25
|
12
|
30/30
|
10
|
NBCG-M25S-11-L
|
7-11
|
25
|
15
|
25/25
|
10
|
NBCG-M25S-14-L
|
9-14
|
25
|
15
|
25/25
|
10
|
NBCG-M25 -16-L
|
12-16
|
25
|
15
|
30/30
|
10
|
NBCG-M25 -18-L
|
14-18
|
25
|
15
|
30/30
|
10
|
|
