| 产品名称： |

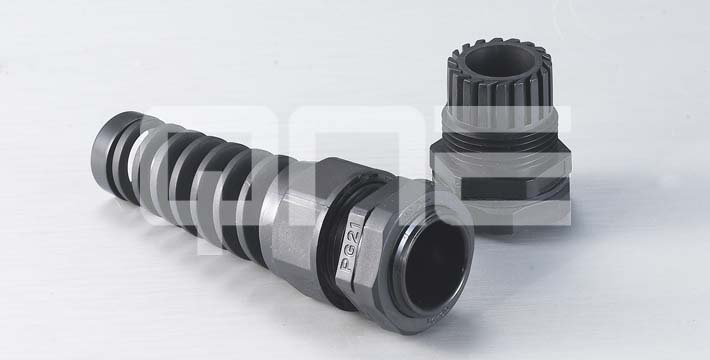

耐扭式电缆固定头MG、PG、G(PF)、NPT（连体）已通过UL认证 |
|
·螺牙规格:
·产品材质:
·保护等级:
·工作温度:
·产品特性:
·颜色种类:
|
公制牙(Metric), PG牙、G(PFBSP/PS)牙、NPT牙。

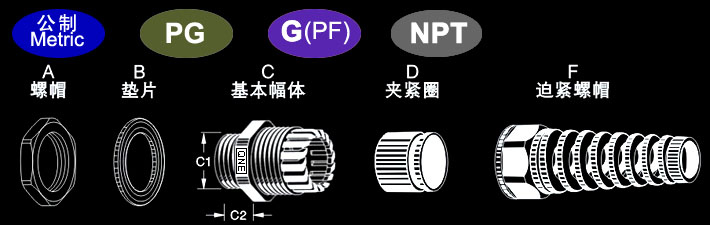

A.C.F部分采用UL认可之尼龙PA66〔防火等级UL94V-2)制成;(可定制UL认可的V-0防火等级尼龙原料);
B.D部分采用三元乙丙耐侯橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
IP68-10（已通过UL认证）
静态-40℃至100℃,或瞬间可耐热至120℃;动态-20℃至50℃,或瞬间可耐热至100℃。
特殊夹聚爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱
酸、酒精、油、油脂及一般溶剂。
黑色、灰色。其它颜色可定做。
|
|
编号
|
螺牙规格
|
电缆范围
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
Item.No.
|
Thread
|
Cable Range
|
Thread O.D.
|
Thread Length
|
Spanner Size
|
Std.Pkg
|
|
|
|
Ф(mm)
|
C1(mm)
|
C2(mm)
|
A&F(mm)
|
(pcs)
|
|
SCG-M10-6
|
M10x1.5
|
3/6
|
10
|
8
|
15/13
|
50
|
|
SCG-M12S-3
|
M12 x 1.5
|
1/3
|
12
|
8.5
|
18/15
|
50
|
|
SCG-M12S-6
|
3/6
|
12
|
8.5
|
18/15
|
50
|
|
SCG-M12SL-3
|
1/3
|
12
|
15
|
18/15
|
50
|
|
SCG-M12SL-6
|
3/6
|
12
|
15
|
18/15
|
50
|
|
SCG-M12-5
|
2/5
|
12
|
8.5
|
18/19
|
50
|
|
SCG-M12-7
|
3/7
|
12
|
8.5
|
18/19
|
50
|
|
SCG-M12L-5
|
2/5
|
12
|
15
|
18/19
|
50
|
|
SCG-M12L-7
|
3/7
|
12
|
15
|
18/19
|
50
|
|
SCG-M16S-5.5
|
M16 x 1.5
|
3-5.5
|
16
|
10
|
22/19
|
50
|
|
SCG-M16S-8
|
4/8
|
16
|
10
|
22/19
|
50
|
|
SCG-M16SL-5.5
|
3-5.5
|
16
|
15
|
22/19
|
50
|
|
SCG-M16SL-8
|
3/8
|
16
|
15
|
22/19
|
50
|
|
SCG-M16-7
|
3/7
|
16
|
10
|
22/22
|
50
|
|
SCG-M16-10
|
4/10
|
16
|
10
|
22/22
|
50
|
|
SCG-M16L-7
|
3/7
|
16
|
15
|
22/22
|
50
|
|
SCG-M16L-10
|
4/10
|
16
|
15
|
22/22
|
50
|
|
SCG-M18-7
|
M18 x 1.5
|
3/7
|
18
|
10
|
24/22
|
50
|
|
SCG-M18-10
|
4/10
|
18
|
10
|
24/22
|
50
|
|
SCG-M18L-7
|
3/7
|
18
|
15
|
24/22
|
50
|
|
SCG-M18L-10
|
4/10
|
18
|
15
|
24/22
|
50
|
|
SCG-M20M-7
|
M20 x 1.5
|
3/7
|
20
|
10
|
27/22
|
50
|
|
SCG-M20M-10
|
5/10
|
20
|
10
|
27/22
|
50
|
|
SCG-M20S-9
|
5/9
|
20
|
10
|
27/24
|
20
|
|
SCG-M20S-12.5
|
6-12.5
|
20
|
10
|
27/24
|
20
|
|
SCG-M20SL-9
|
5/9
|
20
|
15
|
27/24
|
50
|
|
SCG-M20SL-12.5
|
6-12.5
|
20
|
15
|
27/24
|
50
|
|
SCG-M20-11
|
3/11
|
20
|
11
|
27/27
|
20
|
|
SCG-M20-13.5
|
5-13.5
|
20
|
11
|
27/27
|
20
|
|
SCG-M20L-11
|
3/11
|
20
|
15
|
27/27
|
20
|
|
SCG-M20L-13.5
|
5-13.5
|
20
|
15
|
27/27
|
20
|
|
SCG-M22-11
|
M22 x 1.5
|
5/11
|
22
|
11
|
30/27
|
50
|
|
SCG-M22-13.5
|
8.5-14
|
22
|
11
|
30/27
|
50
|
|
SCG-M24-11
|
M24 x 1.5
|
5/11
|
24
|
11
|
30/27
|
50
|
|
SCG-M24-14
|
8.5-14
|
24
|
11
|
30/27
|
50
|
|
SCG-M25S-11
|
M25 x 1.5
|
5/11
|
25
|
11.6
|
33/27
|
50
|
|
SCG-M25S-14
|
8.5-14
|
25
|
11.6
|
33/27
|
50
|
|
SCG-M25-16
|
8/16
|
25
|
11.6
|
33/33
|
20
|
|
SCG-M25-18
|
10/18
|
25
|
11.6
|
33/33
|
20
|
|
SCG-M25L-16
|
8/16
|
25
|
15
|
33/33
|
20
|
|
SCG-M25L-18
|
10/18
|
25
|
15
|
33/33
|
20
|
|
SCG-M27-16
|
M27 x 1.5
|
8/16
|
27
|
12
|
45/33
|
50
|
|
SCG-M27-18
|
10/18
|
27
|
12
|
45/33
|
50
|
|
SCG-M32S-16
|
M32 x 1.5
|
8/16
|
32
|
15
|
45/33
|
50
|
|
SCG-M32S-18
|
10/18
|
32
|
15
|
45/33
|
50
|
|
SCG-M32-17.5
|
13-17.5
|
32
|
15
|
45/41
|
20
|
|
SCG-M32-25
|
17-25
|
32
|
15
|
45/41
|
20
|
|
SCG-M36-17.5
|
M36 x 1.5
|
13-17.5
|
36
|
12
|
45/41
|
20
|
|
SCG-M36-25
|
17-25
|
36
|
12
|
45/41
|
20
|
|
SCG-M40S-17.5
|
M40 x 1.5
|
13-17.5
|
40
|
15
|
50/41
|
20
|
|
SCG-M40S-25
|
17-25
|
40
|
15
|
50/41
|
20
|
|
SCG-PG7S-3
|
PG7
|
1/3
|
12.5
|
8
|
17/15
|
50
|
|
SCG-PG7S-6
|
3/6
|
12.5
|
8
|
17/15
|
50
|
|
SCG-PG7SL-3
|
1/3
|
12.5
|
15
|
17/15
|
50
|
|
SCG-PG7SL-6
|
3/6
|
12.5
|
15
|
17/15
|
50
|
|
SCG-PG7-5
|
2/5
|
12.5
|
8
|
17/19
|
50
|
|
SCG-PG7-7
|
3/7
|
12.5
|
8
|
17/19
|
50
|
|
SCG-PG9-5.5
|
PG9
|
2-5.5
|
15.2
|
8.2
|
22/19
|
50
|
|
SCG-PG9-7.5
|
3-7.5
|
15.2
|
8.2
|
22/19
|
50
|
|
SCG-PG9L-5.5
|
3-5.5
|
15.2
|
15
|
22/19
|
50
|
|
SCG-PG9L-7.5
|
4/8
|
15.2
|
15
|
22/19
|
50
|
|
SCG-PG11-7
|
PG11
|
3/7
|
18.6
|
10
|
24/22
|
50
|
|
SCG-PG11-10
|
4/10
|
18.6
|
10
|
24/22
|
50
|
|
SCG-PG11L-7
|
3/7
|
18.6
|
15
|
24/22
|
50
|
|
SCG-PG11L-10
|
5/10
|
18.6
|
15
|
24/22
|
50
|
|
SCG-PG13.5-9
|
PG13.5
|
3/9
|
20.4
|
10
|
27/24
|
20
|
|
SCG-PG13.5-12.5
|
5-12.5
|
20.4
|
10
|
27/24
|
20
|
|
SCG-PG13.5L-9
|
5/9
|
20.4
|
15
|
27/24
|
50
|
|
SCG-PG13.5L-12.5
|
6-12.5
|
20.4
|
15
|
27/24
|
50
|
|
SCG-PG16-11
|
PG16
|
5/11
|
22.5
|
10.8
|
30/27
|
20
|
|
SCG-PG16-14
|
6/14
|
22.5
|
10.8
|
30/27
|
20
|
|
SCG-PG16L-11
|
5/11
|
22.5
|
15
|
30/27
|
50
|
|
SCG-PG16L-14
|
8.5-14
|
22.5
|
15
|
30/27
|
50
|
|
SCG-PG19-11
|
PG19
|
5/11
|
24
|
11
|
30/27
|
50
|
|
SCG-PG19-14
|
8.5-14
|
24
|
11
|
30/27
|
50
|
|
SCG-PG21-15.5
|
PG21
|
8-15.5
|
28.3
|
12
|
36/33
|
20
|
|
SCG-PG21-17.5
|
10-17.5
|
28.3
|
12
|
36/33
|
20
|
|
SCG-PG21L-13
|
7/13
|
28.3
|
15
|
36/33
|
20
|
|
SCG-PG21L-17.5
|
12.5-18
|
28.3
|
15
|
36/33
|
20
|
|
SCG-PG29S-13
|
PG29
|
7/13
|
37
|
12
|
46/33
|
20
|
|
SCG-PG29S-18
|
13-17.5
|
37
|
12
|
46/33
|
20
|
|
SCG-PG29-17.5
|
7/13
|
37
|
12
|
46/41
|
20
|
|
SCG-PG29-25
|
17-25
|
37
|
12
|
46/41
|
20
|
|
SCG-G1/4-5
|
G (PF) 1/4"
|
3-5.3
|
13.157
|
8.5
|
19/19
|
50
|
|
SCG-G1/4-8
|
4/8
|
13.157
|
8.5
|
19/19
|
50
|
|
SCG-G3/8-7
|
G（PF) 3/8"
|
3/7
|
16.7
|
10
|
22/22
|
50
|
|
SCG-G3/8-10
|
4/10
|
16.7
|
10
|
22/22
|
50
|
|
SCG-G1/2-9
|
G (PF) 1/2"
|
3/9
|
20.5
|
10
|
27/24
|
20
|
|
SCG-G1/2-12.5
|
5-12.5
|
20.5
|
10
|
27/24
|
20
|
|
SCG-G3/4-16
|
G (PF) 3/4"
|
8/16
|
26.4
|
12
|
33/27
|
20
|
|
SCG-G3/4-18
|
10/18
|
26.4
|
12
|
33/27
|
20
|
|
SCG-G1-16
|
G (PF) 1"
|
13-17.5
|
33.249
|
15
|
46/41
|
20
|
|
SCG-G1-18
|
17-25
|
33.249
|
15
|
46/41
|
20
|
|
SCG-NPT3/8-7
|
NPT3/8"
|
3-5.3
|
17
|
10
|
22
|
50
|
|
SCG-NPT3/8-10
|
4/10
|
17
|
10
|
22
|
50
|
|
SCG-NPT1/2-9
|
NPT1/2"
|
5/9
|
24
|
10
|
24
|
20
|
|
SCG-NPT1/2-13
|
7/13
|
24
|
10
|
24
|
20
|
|
SCG-NPT3/4-16
|
NPT3/4"
|
8/16
|
26.5
|
15
|
33
|
20
|
|
SCG-NPT3/4-18
|
10/18
|
26.5
|
15
|
33
|
20
|
|
SCG-NPT1-16
|
NPT 1"
|
13-17.5
|
33.249
|
15
|
41
|
20
|
|
SCG-NPT1-18
|
17-25
|
33.249
|
15
|
41
|
20
|
|
|
|
