产品名称: |

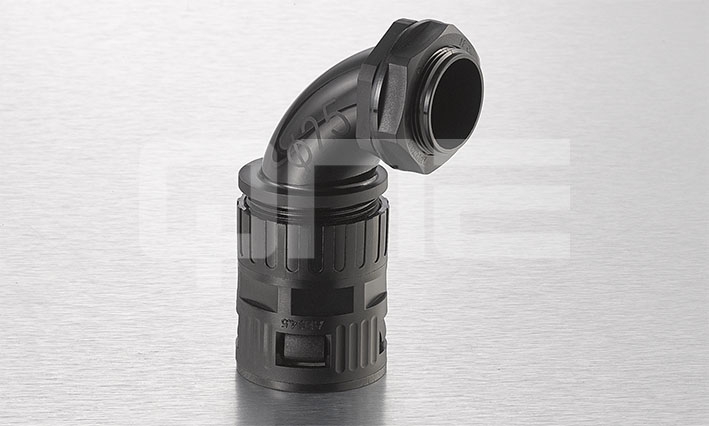

90°大弧度弯角电缆波纹管双固定接头 |
螺牙规格:公制牙(Metric)

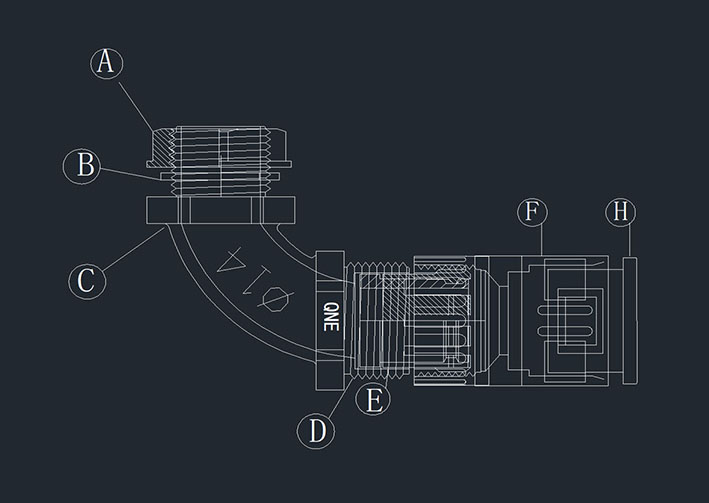

产品材质:A.C.E.F,H部分采用UL认可之尼龙PA66(防火等级UL94V-2)制成;(可定制UL认可的V-0防火等级尼龙原料);B.D部分采用三元乙丙耐候橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
保护等级:IP68
工作温度: -40℃至100℃,或瞬间可耐热至120℃
产品特性:采用弯角造型,使用于弯角环境。能够同时紧固电缆及波纹管
颜色种类:黑色、灰色,其它颜色可定做。
适配软管
Accommodated Pipes
|
编号
Item.No.
|
电缆范围
Cable Range
Ф(mm)
|
螺纹外径
Thread O.D.
|
螺纹长度
Thread Length
|
AD13
|
ITF-AD13+QECG-M12E-5.5-ST
|
4-5.5mm
|
12mm
|
10mm
|
ITF-AD13+QECG-M12E-8-ST
|
6-8mm
|
12mm
|
10mm
|
AD15.8
|
ITF-AD15.8+QECG-M16E-7-ST
|
4-7mm
|
16mm
|
10mm
|
ITF-AD15.8+QECG-M16E-10-ST
|
6-10mm
|
16mm
|
10mm
|
AD21.2
|
ITF-AD21.2+QECG-M20E-11
|
6-11mm
|
20mm
|
15mm
|
ITF-AD21.2+QECG-M20E-14
|
9-14mm
|
20mm
|
15mm
|
AD25.0
|
ITF-AD25.0+QECG-M25E-16
|
10-16mm
|
25mm
|
15mm
|
ITF-AD25.0+QECG-M25E-18
|
13-18mm
|
25mm
|
15mm
|
AD34.5
|
ITF-AD34.5+QECG-M32E-22
|
15-22mm
|
32mm
|
15mm
|
ITF-AD34.5+QECG-M32E-25
|
18-25mm
|
32mm
|
15mm
|
AD42.5
|
ITF-AD42.5+QECG-M40E-26
|
20-26mm
|
32mm
|
15mm
|
ITF-AD42.5+QECG-M40E-31
|
24-31mm
|
32mm
|
15mm
|
AD54.5
|
ITF-AD54.5+QECG-M50E-36
|
25-33mm
|
50mm
|
20mm
|
ITF-AD54.5+QECG-M50E-41
|
33-41mm
|
50mm
|
20mm
|
|
|
|
