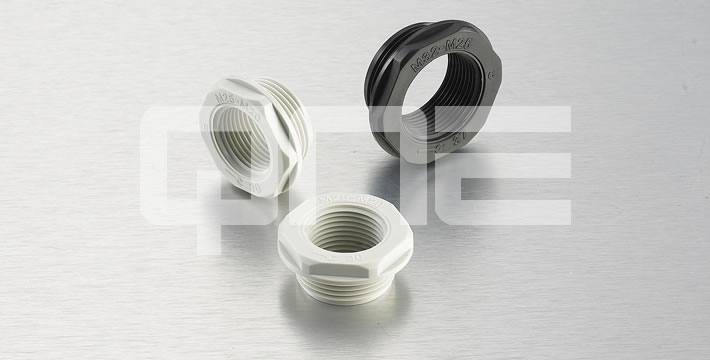

材質：UL合格之NYLON66，防火等級94V-2。
用途：此产品可将不同的螺纹外径尺寸进行自由转换; 可根据客户要求定制，生产不同螺纹长度及其他不同螺纹之间的转换。
另外可以配合无螺纹壳体使用，使之增添内螺纹！
To allow switching between different thread outside diameter. For example, from large metric external thread to small metric using. We also can make as your request for this product.
|

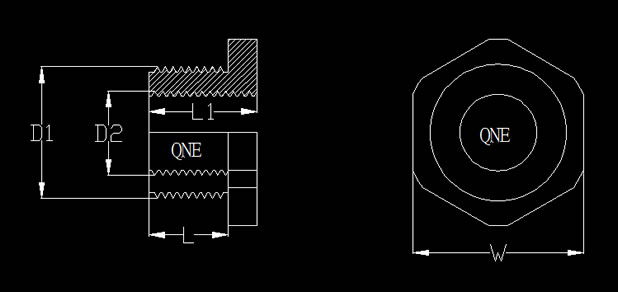

型號
|
外螺紋規格
|
內螺紋規格
|
L 螺紋長度
|
L1 螺紋長度
|
W 寬度
|
包裝
|
|
Item No.
|
D1 (鐵板孔徑)
|
D2 (固定頭尺寸)
|
Thread length
|
Thread length
|
W. across flats
|
Packing
|
|
|
External threa
|
Internal thread
|
|
|
|
|
|
NLBJH-M16-M12
|
M16X1.5
|
M12X1.5
|
8
|
12
|
22
|
100pcs
|
|
NLBJH-M20-M16
|
M20X1.5
|
M16X1.5
|
8
|
12
|
24.2
|
100pcs
|
|
NLBJH-M25-M20
|
M25X1.5
|
M20X1.5
|
10
|
15
|
29
|
100pcs
|
|
NLBJH-M32-M25
|
M32X1.5
|
M25X1.5
|
10
|
15
|
35.9
|
50pcs
|
|
NLBJH-M40-M32
|
M40X1.5
|
M32X1.5
|
10
|
15
|
45.8
|
25pcs
|
|
NLBJH-M50-M40
|
M50X1.5
|
M40X1.5
|
11.5
|
15
|
55
|
25pcs
|
|
NLBJH-M63-M50
|
M63X1.5
|
M50X1.5
|
11.5
|
16
|
67.5
|
25pcs
|
|
