| 产品名称： |

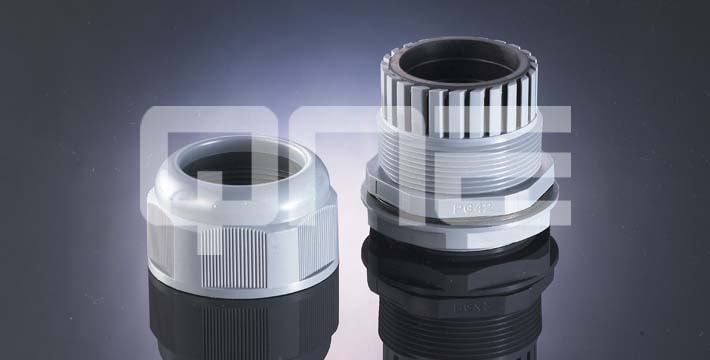

尼龙电缆固定头MG、PG、G(PF)、NPT型（连体）-已通过UL认证 |
|
·螺牙规格:
·产品材质:
·保护等级:
·工作温度:
·产品特性:
·颜色种类:
|
公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙。
A.C.F部分采用UL认可之尼龙PA66(防火等级UL94V-2)制成;(可定制UL认可的V-0防火等级尼龙原料);
B.D部分采用三元乙丙耐候橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
IP68-10（已通过UL认证）
静态-40℃至100℃,或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃.
特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
黑色、灰色，其它颜色可定做。
|
|
螺牙规格
|
编号
|
电缆范围
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
Thread
|
Item.No.
|
Cable Range
|
Thread O.D.
|
Thread Length
|
Spanner Size
|
Std.Pkg
|
|
|
|
Ф(mm)
|
C1(mm)
|
C2(mm)
|
A&F(mm)
|
(pcs)
|
|
M8x1.25
|
NCG-M8-2.5
|
1-2.5
|
8
|
7.5
|
12/13
|
50
|
|
NCG-M8-4.8
|
2-4.8
|
8
|
7.5
|
12/13
|
50
|
|
M10x1.5
|
NCG-M10 -3
|
1-3
|
10
|
8
|
15/13
|
50
|
|
NCG-M10 -6
|
3-6
|
10
|
8
|
15/13
|
50
|
|
M12x1.5
|
NCG-M12S -3
|
1-3
|
12
|
8.5
|
18/15
|
50
|
|
NCG-M12S-6
|
3-6.5
|
12
|
8.5
|
18/15
|
50
|
|
NCG-M12SL-3
|
1-3
|
12
|
15
|
18/15
|
50
|
|
NCG-M12SL-6
|
3-6.5
|
12
|
15
|
18/15
|
50
|
|
NCG-M12 -5
|
3-5.5
|
12
|
8.5
|
18/19
|
50
|
|
NCG-M12 -8
|
4-8
|
12
|
8.5
|
18/19
|
50
|
|
NCG-M12L -5
|
3-5.5
|
12
|
15
|
18/19
|
50
|
|
NCG-M12L -8
|
4-8
|
12
|
15
|
18/19
|
50
|
|
M16x1.5
|
NCG-M16S -5
|
3-5.5
|
16
|
10
|
22/19
|
50
|
|
NCG-M16S -8
|
4-8
|
16
|
10
|
22/19
|
50
|
|
NCG-M16SL-5
|
3-5.5
|
16
|
15
|
22/19
|
50
|
|
NCG-M16SL-8
|
4-8
|
16
|
15
|
22/19
|
50
|
|
NCG-M16 -7
|
3-7
|
16
|
10
|
22/22
|
50
|
|
NCG-M16 -10
|
5-10
|
16
|
10
|
22/22
|
50
|
|
NCG-M16L -7
|
3-7
|
16
|
15
|
22/22
|
50
|
|
NCG-M16L -10
|
5-10
|
16
|
15
|
22/22
|
50
|
|
M18x1.5
|
NCG-M18 -7
|
3-7
|
18
|
10
|
24/22
|
50
|
|
NCG-M18 -10
|
5-10
|
18
|
10
|
24/22
|
50
|
|
NCG-M18L -7
|
3-7
|
18
|
15
|
24/22
|
50
|
|
NCG-M18L -10
|
5-10
|
18
|
15
|
24/22
|
50
|
|
M20x1.5
|
NCG-M20M -7
|
3-7
|
20
|
10
|
27/22
|
50
|
|
NCG-M20M -10
|
5-10
|
20
|
10
|
27/22
|
50
|
|
NCG-M20S -9
|
5-9
|
20
|
10
|
27/24
|
50
|
|
NCG-M20S -12.5
|
6-12.5
|
20
|
10
|
27/24
|
50
|
|
NCG-M20SL -9
|
5-9
|
20
|
15
|
27/24
|
50
|
|
NCG-M20SL-12.5
|
6-12.5
|
20
|
15
|
27/24
|
50
|
|
NCG-M20 -11
|
5-11
|
20
|
11
|
27/27
|
50
|
|
NCG-M20 -14
|
8.5-14
|
20
|
11
|
27/27
|
50
|
|
NCG-M20L -11
|
5-11
|
20
|
15
|
27/27
|
50
|
|
NCG-M20L -14
|
8.5-14
|
20
|
15
|
27/27
|
50
|
|
M22X1.5
|
NCG-M22 -11
|
5-11
|
22
|
11
|
30/27
|
50
|
|
NCG-M22 -14
|
8.5-14
|
22
|
11
|
30/27
|
50
|
|
M24X1.5
|
NCG-M24 -11
|
5-11
|
24
|
11
|
30/27
|
50
|
|
NCG-M24 -14
|
8.5-14
|
24
|
11
|
30/27
|
50
|
|
M25x1.5
|
NCG-M25S -11
|
5-11
|
25
|
11.6
|
33/27
|
50
|
|
NCG-M25S -14
|
8.5-14
|
25
|
11.6
|
33/27
|
50
|
|
NCG-M25 -13
|
7-13
|
25
|
11.6
|
33/33
|
50
|
|
NCG-M25 -18
|
12.5-18
|
25
|
11.6
|
33/33
|
50
|
|
NCG-M25L -13
|
7-13
|
25
|
15
|
33/33
|
50
|
|
NCG-M25L -18
|
12.5-18
|
25
|
15
|
33/33
|
50
|
|
M32x1.5
|
NCG-M32 -17.5
|
13-17.5
|
32
|
15
|
41/42
|
20
|
|
NCG-M32 -25
|
18-25
|
32
|
15
|
41/42
|
20
|
|
M36x1.5
|
NCG-M36 -17.5
|
13-17.5
|
36
|
12
|
45/42
|
20
|
|
NCG-M36 -25
|
18-25
|
36
|
12
|
45/42
|
20
|
|
M40x1.5
|
NCG-M40 -26.5
|
17-25
|
40
|
15
|
50/52
|
10
|
|
NCG-M40 -31
|
23-32
|
40
|
15
|
50/52
|
10
|
|
M50x1.5
|
NCG-M50 -32
|
25-32
|
50
|
15
|
62/62
|
10
|
|
NCG-M50 -41
|
30-41
|
50
|
15
|
62/62
|
10
|
|
M63x1.5
|
NCG-M63 -41
|
30-40
|
63
|
18
|
75/65
|
10
|
|
NCG-M63 -45
|
35-45
|
63
|
18
|
75/65
|
10
|
|
螺牙规格
|
编号
|
电缆范围
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
Thread
|
Item.No.
|
Cable Range
|
Thread O.D.
|
Thread Length
|
Spanner Size
|
Std.Pkg
|
|
|
|
Ф(mm)
|
C1(mm)
|
C2(mm)
|
A&F(mm)
|
(pcs)
|
|
PG7
|
NCG-PG7S -3
|
1-3
|
12.5
|
8
|
17/15
|
50
|
|
NCG-PG7S -6
|
3-6.5
|
12.5
|
8
|
17/15
|
50
|
|
NCG-PG7SL -3
|
1-3
|
12.5
|
15
|
17/15
|
50
|
|
NCG-PG7SL -6
|
3-6.5
|
12.5
|
15
|
17/15
|
50
|
|
NCG-PG7 -5
|
3-5.5
|
12.5
|
8
|
17/19
|
50
|
|
NCG-PG7 -8
|
4-8
|
12.5
|
8
|
17/19
|
50
|
|
PG9
|
NCG-PG9 -5.5
|
3-5.5
|
15.2
|
8.2
|
22/19
|
50
|
|
NCG-PG9 -8
|
4-8
|
15.2
|
8.2
|
22/19
|
50
|
|
NCG-PG9L -5.5
|
3-5.5
|
15.2
|
15
|
22/19
|
50
|
|
NCG-PG9L -8
|
4-8
|
15.2
|
15
|
22/19
|
50
|
|
PG11
|
NCG-PG11 -7
|
3-7
|
18.6
|
10
|
24/22
|
50
|
|
NCG-PG11 -10
|
5-10
|
18.6
|
10
|
24/22
|
50
|
|
NCG-PG11L -7
|
3-7
|
18.6
|
15
|
24/22
|
50
|
|
NCG-PG11L -10
|
5-10
|
18.6
|
15
|
24/22
|
50
|
|
PG13.5
|
NCG-PG13.5-9
|
5-9
|
20.4
|
10
|
27/24
|
50
|
|
NCG-PG13.5-12.5
|
6-12.5
|
20.4
|
10
|
27/24
|
50
|
|
NCG-PG13.5L-9
|
5-9
|
20.4
|
15
|
27/24
|
50
|
|
NCG-PG13.5L-12.5
|
6-12.5
|
20.4
|
15
|
27/24
|
50
|
|
PG16
|
NCG-PG16 -11
|
5-11
|
22.5
|
10.8
|
30/27
|
50
|
|
NCG-PG16 -14
|
8.5-14
|
22.5
|
10.8
|
30/27
|
50
|
|
NCG-PG16L -11
|
5-11
|
22.5
|
15
|
30/27
|
50
|
|
NCG-PG16L -14
|
8.5-14
|
22.5
|
15
|
30/27
|
50
|
|
PG19
|
NCG-PG19 -11
|
5-11
|
24
|
11
|
30/27
|
50
|
|
NCG-PG19 -14
|
8.5-14
|
24
|
11
|
30/27
|
50
|
|
PG21
|
NCG-PG21 -13
|
7-13
|
28.3
|
12
|
36/33
|
50
|
|
NCG-PG21 -18
|
12.5-18
|
28.3
|
12
|
36/33
|
50
|
|
NCG-PG21L -13
|
7-13
|
28.3
|
15
|
36/33
|
50
|
|
NCG-PG21L -18
|
12.5-18
|
28.3
|
15
|
36/33
|
50
|
|
PG25
|
NCG-PG25 -20
|
14-20
|
30
|
13
|
36/37
|
50
|
|
PG29
|
NCG-PG29 -17.5
|
13-17.5
|
37
|
12
|
46/41
|
20
|
|
NCG-PG29 -25
|
18-25
|
37
|
12
|
46/41
|
20
|
|
PG36
|
NCG-PG36 -25.5
|
17-25.5
|
47
|
15
|
57/52
|
10
|
|
NCG-PG36 -31
|
24-32
|
47
|
15
|
57/52
|
10
|
|
PG42
|
NCG-PG42 -32
|
25-32
|
54
|
15
|
64/62
|
10
|
|
NCG-PG42 -41
|
30-41
|
54
|
15
|
64/62
|
10
|
|
PG48
|
NCG-PG48 -38
|
30-40
|
59.3
|
18.2
|
70/65
|
10
|
|
NCG-PG48 -45
|
35-45
|
59.3
|
18.2
|
70/65
|
10
|
|
Thread
|
Item.No.
|
Cable Range
|
Thread O.D.
|
Thread Length
|
Spanner Size
|
Std.Pkg
|
|
|
|
Ф(mm)
|
C1(mm)
|
C2(mm)
|
A&F(mm)
|
(pcs)
|
|
G(PF)1/4"
|
NCG-G1/4 -5
|
3-5.3
|
13.157
|
8.5
|
19/19
|
50
|
|
NCG-G1/4 -8
|
4-8
|
13.157
|
8.5
|
19/19
|
50
|
|
G(PF)3/8"
|
NCG-G3/8 -7
|
3-7
|
16.662
|
10
|
22/22
|
50
|
|
NCG-G3/8 -10
|
5-10
|
16.662
|
10
|
22/22
|
50
|
|
G(PF)1/2"
|
NCG-G1/2 -9
|
5-9
|
20.955
|
10
|
27/24
|
50
|
|
NCG-G1/2 -12.5
|
6-12.5
|
20.955
|
10
|
27/24
|
50
|
|
G(PF)3/4"
|
NCG-G3/4 -13
|
7-13
|
26.441
|
14.5
|
36/33
|
50
|
|
NCG-G3/4 -18
|
12.5-18
|
26.441
|
14.5
|
36/33
|
50
|
|
G(PF)1"
|
NCG-G1 -17.5
|
13-17.5
|
33.249
|
15
|
46/41
|
20
|
|
NCG-G1 -25
|
18-25
|
33.249
|
15
|
46/41
|
20
|
|
G(PF)1 1/4"
|
NCG-G11/4-25.5
|
17-25.5
|
41.91
|
15
|
57/52
|
10
|
|
NCG-G11/4-31
|
24-32
|
41.91
|
15
|
57/52
|
10
|
|
G(PF)1 1/2"
|
NCG-G1 1/2 -32
|
25-32
|
48
|
16
|
60/62
|
10
|
|
NCG-G1 1/2 -41
|
30-41
|
48
|
16
|
60/62
|
10
|
|
螺牙规格
|
编号
|
电缆范围
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
Thread
|
Item.No.
|
Cable Range
|
Thread O.D.
|
Thread Length
|
Spanner Size
|
Std.Pkg
|
|
|
|
Ф(mm)
|
C1(mm)
|
C2(mm)
|
A&F(mm)
|
(pcs)
|
|
NPT1/4"
|
NCG-NPT1/4 -5.5
|
3-5.5
|
13.157
|
8.5
|
19
|
50
|
|
NCG-NPT1/4 -8
|
4-8
|
13.157
|
8.5
|
19
|
50
|
|
NPT3/8"
|
NCG-NPT3/8 -7
|
3-7
|
16.662
|
10
|
22
|
50
|
|
NCG-NPT3/8 -10
|
5-10
|
16.662
|
10
|
22
|
50
|
|
NPT1/2"
|
NCG-NPT1/2 -9
|
5-9
|
20.955
|
10
|
24
|
50
|
|
NCG-NPT1/2 -13
|
6-12.5
|
20.955
|
10
|
24
|
50
|
|
NPT3/4"
|
NCG-NPT3/4 -13
|
7-13
|
26.441
|
15
|
33
|
50
|
|
NCG-NPT3/4 -18
|
12.5-18
|
26.441
|
15
|
33
|
50
|
|
NPT1"
|
NCG-NPT1 -17.5
|
13-17.5
|
33.249
|
17
|
41
|
20
|
|
NCG-NPT1 -25
|
18-25
|
33.249
|
17
|
41
|
20
|
|
NPT1 1/4"
|
NCG-NPT11/4-25.5
|
17-25.5
|
41.91
|
17
|
52
|
20
|
|
NCG-NPT11/4-31
|
24-32
|
41.91
|
17
|
52
|
20
|
|
|
|
