| 产品名称： |

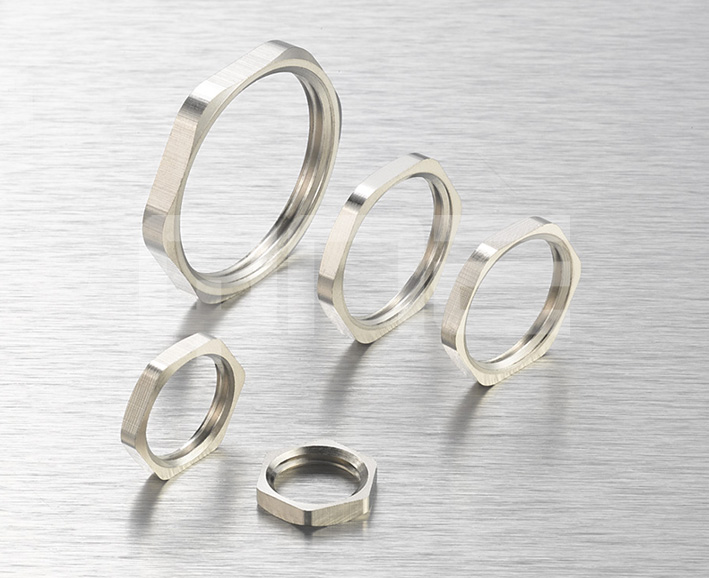

黄铜螺母 |
螺牙规格：公制牙(Metric)、PG牙、G (PF / BSP / PS)牙。
产品材质：采用黄铜镀镍制成
产品特性：定制螺纹规格灵活。

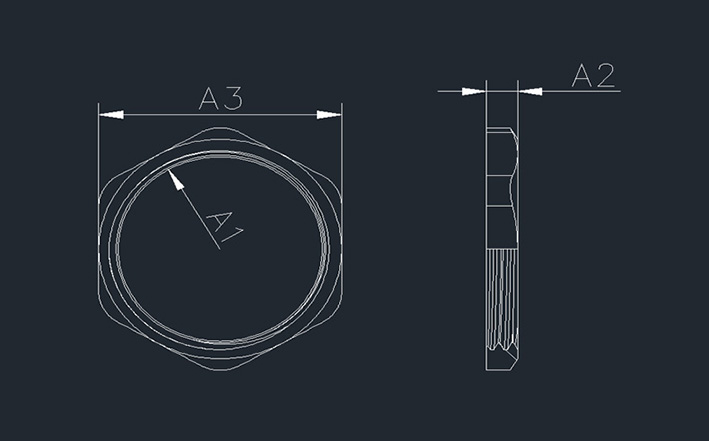

螺牙规格
Thread
A1
|
编号
Item.No.
|
厚度
Thread
Length
A2
|
扳手径
Spanner Size
A3
|
|
|
|
|
|
|
M10X1.5
|
BCGL-M10-A
|
3
|
14
|
|
M12X1.5
|
BCGL-M12-A
|
3
|
14
|
|
M16X1.5
|
BCGL-M16-A
|
3
|
18
|
|
M18X1.5
|
BCGL-M18-A
|
3
|
20
|
|
M20X1.5
|
BCGL-M20-A
|
3
|
22
|
|
M22X1.5
|
BCGL-M22-A
|
3
|
24
|
|
M24X1.5
|
BCGL-M24-A
|
3.5
|
27
|
|
M25X1.5
|
BCGL-M25-A
|
3.5
|
27
|
|
M27X1.5
|
BCGL-M27-A
|
3.5
|
30
|
|
M32X1.5
|
BCGL-M32-A
|
4
|
35
|
|
M36X1.5
|
BCGL-M36-A
|
4
|
40
|
|
M40X1.5
|
BCGL-M40--A
|
4.5
|
45
|
|
M50X1.5
|
BCGL-M50-A
|
5.5
|
55
|
|
M63X1.5
|
BCGL-M63-A
|
5.5
|
68
|
|
PG7
|
BCGL-PG7-A
|
3
|
14
|
|
PG9
|
BCGL-PG9-A
|
3
|
17
|
|
PG11
|
BCGL-PG11-A
|
3
|
22
|
|
PG13.5
|
BCGL-PG13.5-A
|
3
|
24
|
|
PG16
|
BCGL-PG16-A
|
3
|
25
|
|
PG19
|
BCGL-PG19-A
|
3.5
|
30
|
|
PG21
|
BCGL-PG21-A
|
3.5
|
30
|
|
PG25
|
BCGL-PG25-A
|
3.5
|
35
|
|
PG29
|
BCGL-PG29-A
|
4
|
40
|
|
PG36
|
BCGL-PG36-A
|
4.5
|
50
|
|
PG42
|
BCGL-PG42-A
|
5.5
|
57
|
|
PG48
|
BCGL-PG48-A
|
5.5
|
64
|
|
G1/4
|
BCGL-G1/4-A
|
3
|
15
|
|
G3/8
|
BCGL-G3/8-A
|
3
|
20
|
|
G1/2
|
BCGL-G1/2-A
|
63
|
24
|
|
G3/4
|
BCGL-G3/4-A
|
3.5
|
30
|
|
G1
|
BCGL-G1-A
|
4.5
|
40
|
|
G1 1/4
|
BCGL-G1 1/4-A
|
5.5
|
50
|
|
G1 1/2
|
BCGL-G1 1/2-A
|
5.5
|
57
|
|
G2
|
BCGL-G2-A
|
5.5
|
64
|
|
|
|
