螺牙规格：公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙。

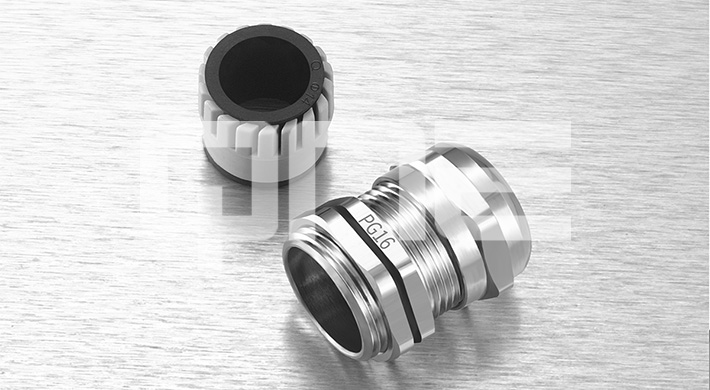

产品材质：A.C.F部分以黄铜镀镍制成，E部分以UL认可之尼龙PA66制成(防火等级UL94V-2),BD部分采用EPDM耐候橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
工作温度：静态-40℃至100℃,或瞬间可耐热至120℃;（可定制-60℃至220℃）
产品特性：特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
螺牙规格
Thread
|
编号
Item.No.
|
电缆范围
Cable Range ФF2
(mm)
|
螺纹外径
Thread O.D.C1
(mm)
|
螺纹长度
Thread LengthC2
(mm)
|
扳手径
Spanner SizeF1&A2
(mm)
|
包装
Std.Pkg
(pcs)
|
|
M10×1.5
|
BCGL-M10-6.5
|
3--6.5
|
10
|
6.5
|
14/14
|
20
|
|
M12x1.5
|
BCGL-M12S-6.5
|
3--6.5
|
12
|
6.5
|
14/14
|
20
|
|
|
BCGL-M12-8
|
4.5--8
|
12
|
8
|
17/14
|
20
|
|
M16×1.5
|
BCGL-M16S-8
|
4.5--8
|
16
|
8
|
17/18
|
20
|
|
|
BCGL-M16-10
|
6--10
|
16
|
8
|
20/18
|
20
|
|
M18×1.5
|
BCGL-M18S-8
|
4.5--8
|
18
|
8
|
17/20
|
20
|
|
|
BCGL-M18-10
|
6--10
|
18
|
8
|
20/20
|
20
|
|
M20×1.5
|
BCGL-M20M-10
|
6--10
|
20
|
8
|
17/22
|
20
|
|
|
BCGL-M20S-12
|
7--12
|
20
|
8
|
22/22
|
20
|
|
|
BCGL-M20-14
|
9--14
|
20
|
8
|
24/22
|
20
|
|
M22×1.5
|
BCGL-M22S-12
|
7--12
|
22
|
8
|
22/24
|
20
|
|
|
BCGL-M22-14
|
9--14
|
22
|
8
|
24/24
|
20
|
|
M24×1.5
|
BCGL-M24S-14
|
9--14
|
24
|
9
|
24/27
|
20
|
|
|
BCGL-M24-16
|
12--16
|
24
|
9
|
27/27
|
20
|
|
M25×1.5
|
BCGL-M25M-14
|
9--14
|
25
|
9
|
24/27
|
20
|
|
|
BCGL-M25S-16
|
12--16
|
25
|
9
|
27/27
|
20
|
|
|
BCGL-M25-18
|
14--18
|
25
|
9
|
30/27
|
20
|
|
M27×1.5
|
BCGL-M27-18
|
14--18
|
27
|
9
|
30/30
|
20
|
|
M30×1.5
|
BCGL-M30-18
|
14--18
|
30
|
9
|
30/32
|
20
|
|
M32×1.5
|
BCGL-M32S-18
|
14--18
|
32
|
10
|
30/35
|
20
|
|
|
BCGL-M32-22
|
18--22
|
32
|
10
|
35/35
|
20
|
|
|
BCGL-M32Z--25
|
20--25
|
32
|
10
|
40/35
|
20
|
|
M36×1.5
|
BCGL-M36-25
|
18--22
|
36
|
10
|
40/40
|
20
|
|
M40×1.5
|
BCGL-M40M--22
|
18--22
|
40
|
11
|
35/45
|
10
|
|
|
BCGL-M40S--25
|
21--25
|
40
|
11
|
40/45
|
10
|
|
|
BCGL-M40-30
|
24--30
|
40
|
11
|
45/45
|
10
|
|
M50×1.5
|
BCGL-M50-33
|
25--33
|
50
|
13
|
50/55
|
5
|
|
|
BCGL-M50-38
|
32--38
|
50
|
13
|
57/55
|
5
|
|
M60×1.5
|
BCGL-M60-44
|
37-44
|
60
|
14
|
64/68
|
5
|
|
M63×1.5
|
BCGL-M63-44
|
37-44
|
63
|
14
|
64/68
|
5
|
|
|
|
|
|
|
|
|
螺牙规格
Thread
|
编号
Item.No.
|
电缆范围
Cable Range Ф
(mm)
|
螺纹外径
Thread O.D.C1
(mm)
|
螺纹长度
Thread LengthC2
(mm)
|
扳手径
Spanner SizeA&F
(mm)
|
包装
Std.Pkg
(pcs)
|
|
PG7
|
BCGL-PG7S-6.5
|
3-6.5
|
12.5
|
6.5
|
14/14
|
20
|
|
|
BCGL-PG7-8
|
4.5--8
|
12.5
|
8
|
17/14
|
20
|
|
PG9
|
BCGL-PG9-8
|
4.5-8
|
15.2
|
8
|
17/18
|
20
|
|
PG11
|
BCGL-PG11-8
|
4.5-8
|
18.6
|
8
|
17/22
|
20
|
|
|
BCGL-PG11-10
|
6--10
|
18.6
|
8
|
20/22
|
20
|
|
PG13.5
|
BCGL-PG13.5-10
|
6--10
|
20.4
|
8
|
20/24
|
20
|
|
|
BCGL-PG13.5-12
|
7--12
|
20.4
|
8
|
22/24
|
20
|
|
PG16
|
BCGL-PG16-11
|
7--12
|
22.5
|
8
|
22/25
|
20
|
|
|
BCGL-PG16-14
|
9--14
|
22.5
|
8
|
24/25
|
20
|
|
PG19
|
BCGL-PG19-14
|
9--14
|
24
|
9
|
24/27
|
20
|
|
|
BCGL-PG19-16
|
12--16
|
24
|
9
|
27/27
|
20
|
|
PG21
|
BCGL-PG21-16
|
12--16
|
28.3
|
9
|
27/30
|
20
|
|
|
BCGL-PG21-18
|
14--18
|
28.3
|
9
|
30/30
|
20
|
|
PG25
|
BCGL-PG25-18
|
14--18
|
30
|
10
|
30/35
|
20
|
|
|
BCGL-PG25-22
|
18--22
|
30
|
10
|
35/35
|
20
|
|
PG29
|
BCGL-PG29-22
|
16--22
|
37
|
10
|
35/40
|
20
|
|
|
BCGL-PG29-25
|
18--25
|
37
|
10
|
40/40
|
20
|
|
PG36
|
BCGL-PG36-30
|
24--30
|
47
|
11
|
45/50
|
10
|
|
|
BCGL-PG36-33
|
25--33
|
47
|
11
|
50/50
|
10
|
|
PG42
|
BCGL-PG42-33
|
25--33
|
54
|
13
|
50/57
|
5
|
|
|
BCGL-PG42-38
|
32--38
|
54
|
13
|
57/57
|
5
|
|
PG48
|
BCGL-PG48-44
|
37--44
|
59.3
|
14
|
64/64
|
5
|
|
|
|
|
|
|
|
|
螺牙规格
Thread
|
编号
Item.No.
|
电缆范围
Cable Range ФF2
(mm)
|
螺纹外径
Thread O.D.C1
(mm)
|
螺纹长度
Thread LengthC2
(mm)
|
扳手径
Spanner SizeF1
(mm)
|
包装
Std.Pkg
(pcs)
|
|
G1/4
|
BCGL- G1/4--6.5
|
3--6.5
|
13.1
|
6.5
|
14/15
|
20
|
|
G3/8
|
BCGL-G3/8--8
|
4.5--8
|
16.6
|
8
|
17/20
|
20
|
|
G1/2
|
BCGL-G1/2--12
|
7--12
|
20.9
|
8
|
20/24
|
20
|
|
G3/4
|
BCGL-G3/4--18
|
14--18
|
26.4
|
9
|
30/30
|
20
|
|
G1
|
BCGL-G1--25
|
18--25
|
33.2
|
10
|
40/40
|
20
|
|
G1-1/4
|
BCGL-G1-1/4--33
|
25--33
|
41.9
|
11
|
50/50
|
10
|
|
G1-1/2
|
BCGL-G1-1/2--38
|
32--38
|
48
|
12
|
57/57
|
5
|
|
G2
|
BCGL-G2--44
|
37--44
|
60
|
14
|
64/64
|
5
|
|
|
|
|
|
|
|
|
螺牙规格
Thread
|
编号
Item.No.
|
电缆范围
Cable Range ФF2
(mm)
|
螺纹外径
Thread O.D.C1
(mm)
|
螺纹长度
Thread LengthC2
(mm)
|
扳手径
Spanner SizeF1
(mm)
|
包装
Std.Pkg
(pcs)
|
|
NPT1/4
|
BCGL-NPT1/4--6.5
|
3--6.5
|
13.1
|
6.5
|
14
|
20
|
|
NPT3/8
|
BCGL-NPT3/8--8
|
4.5--8
|
16.6
|
8
|
17
|
20
|
|
NPT1/2
|
BCGL-NPT1/2--12
|
6--12
|
20.9
|
8
|
20
|
20
|
|
NPT3/4
|
BCGL-NPT3/4--18
|
13--18
|
26.4
|
9
|
30
|
20
|
|
NPT1-25
|
BCGL-NPT1--25
|
18--25
|
33.2
|
10
|
40
|
20
|
|
NPT1-1/4
|
BCGL-NPT1-1/4--33
|
25--33
|
41.9
|
11
|
50
|
10
|
|
NPT1-1/2
|
BCGL-NPT1-1/2--38
|
32--38
|
48
|
12
|
57
|
5
|
|
NPT2
|
BCGL-NPT2--44
|
37--44
|
60
|
14
|
64
|
5
|
|
