·螺牙规格：公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙。

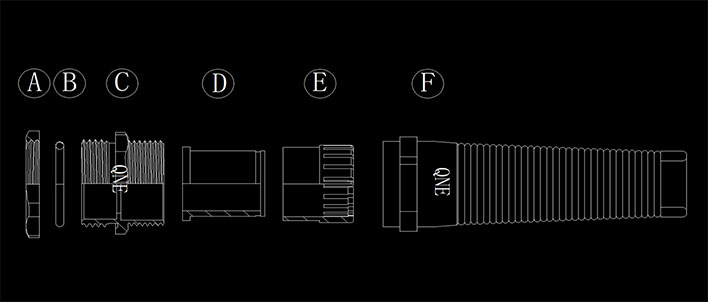

·产品材质：A.C.F部分以黄铜镀镍制成，E部分以UL认可之尼龙PA66制成(防火等级UL94V-2)，BD部分采用EPDM耐候橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
·工作温度：静态-40℃至100℃,或瞬间可耐热至120℃;（可定制-60℃至220℃）
·产品特性：特殊弹性设计更好的保护线缆
·可定制任意螺纹
螺牙规格
Thread
|
编号
Item.No.
|
电缆范围
Cable Range Ф
(mm)
|
螺纹外径
Thread O.D.C1
(mm)
|
螺纹长度
Thread LengthC2
(mm)
|
扳手径
Spanner Size F&A
(mm)
|
|
M10×1.5
|
NBCGL-M10-6.5
|
3--6.5
|
10
|
6.5
|
14/14
|
|
M12x1.5
|
NBCGL-M12S-6.5
|
3--6.5
|
12
|
6.5
|
14/14
|
|
|
NBCGL-M12-8
|
4--8
|
12
|
8
|
17/14
|
|
M16×1.5
|
NBCGL-M16S-8
|
4--8
|
16
|
8
|
17/18
|
|
|
NBCGL-M16-10
|
6--10
|
16
|
8
|
20/18
|
|
M18×1.5
|
NBCGL-M18S-8
|
4--8
|
18
|
8
|
17/20
|
|
|
NBCGL-M18-10
|
6--10
|
18
|
8
|
20/20
|
|
M20×1.5
|
NBCGL-M20M-10
|
6--10
|
20
|
8
|
17/22
|
|
|
NBCGL-M20S-12
|
8--12
|
20
|
8
|
22/22
|
|
|
NBCGL-M20-14
|
9--14
|
20
|
8
|
24/22
|
|
M22×1.5
|
NBCGL-M22S-12
|
8--12
|
22
|
8
|
22/24
|
|
|
NBCGL-M22-14
|
10--14
|
22
|
8
|
24/24
|
|
M24×1.5
|
NBCGL-M24S-14
|
10--14
|
24
|
9
|
24/27
|
|
|
NBCGL-M24-16
|
12--16
|
24
|
9
|
27/27
|
|
M25×1.5
|
NBCGL-M25M-14
|
10--14
|
25
|
9
|
24/27
|
|
|
NBCGL-M25S-16
|
12--16
|
25
|
9
|
27/27
|
|
|
NBCGL-M25-18
|
14--18
|
25
|
9
|
30/27
|
|
M27×1.5
|
NBCGL-M27-18
|
14--18
|
27
|
9
|
30/30
|
|
M30×1.5
|
NBCGL-M30-18
|
14--18
|
30
|
9
|
30/32
|
|
PG7
|
NBCGL-PG7S-6.5
|
3-6.5
|
12.5
|
6.5
|
14/14
|
|
|
NBCGL-PG7-8
|
4--8
|
12.5
|
8
|
17/14
|
|
PG9
|
NBCGL-PG9-8
|
4--8
|
15.2
|
8
|
17/18
|
|
PG11
|
NBCGL-PG11-8
|
4--8
|
18.6
|
8
|
17/22
|
|
|
NBCGL-PG11-10
|
6--10
|
18.6
|
8
|
20/22
|
|
PG13.5
|
NBCGL-PG13.5-10
|
6--10
|
20.4
|
8
|
20/24
|
|
|
NBCGL-PG13.5-12
|
8--12
|
20.4
|
8
|
22/24
|
|
PG16
|
NBCGL-PG16-11
|
8--12
|
22.5
|
8
|
22/25
|
|
|
NBCGL-PG16-14
|
10--14
|
22.5
|
8
|
24/25
|
|
PG19
|
NBCGL-PG19-14
|
10--14
|
24
|
9
|
24/27
|
|
|
NBCGL-PG19-16
|
12--16
|
24
|
9
|
27/27
|
|
PG21
|
NBCGL-PG21-16
|
12--16
|
28.3
|
9
|
27/30
|
|
|
NBCGL-PG21-18
|
14--18
|
28.3
|
9
|
30/30
|
|
PG25
|
NBCGL-PG25-18
|
14--18
|
30
|
10
|
30/35
|
|
G1/4
|
NBCGL- G1/4--6.5
|
3--6.5
|
13.1
|
6.5
|
14/15
|
|
G3/8
|
NBCGL-G3/8--8
|
4--8
|
16.6
|
8
|
17/20
|
|
G1/2
|
NBCGL-G1/2--12
|
8--12
|
20.9
|
8
|
20/24
|
|
G3/4
|
NBCGL-G3/4--18
|
14--18
|
26.4
|
9
|
30/30
|
|
NPT1/4
|
NBCGL-NPT1/4--6.5
|
3--6.5
|
13.1
|
6.5
|
14
|
|
NPT3/8
|
NBCGL-NPT3/8--8
|
4--8
|
16.6
|
8
|
17
|
|
NPT1/2
|
NBCGL-NPT1/2--12
|
8--12
|
20.9
|
8
|
20
|
|
NPT3/4
|
NBCGL-NPT3/4--18
|
13--18
|
26.4
|
9
|
30
|
|
