| 产品名称： |

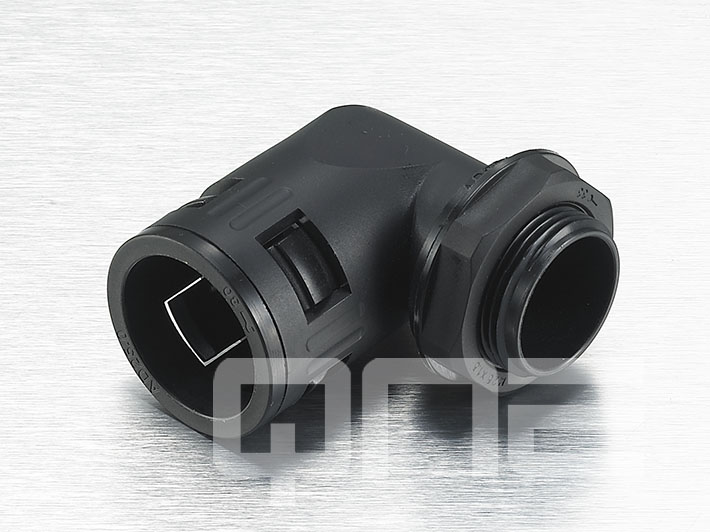

波纹管（浪管）90°弯角快速接头 |
|
螺牙规格:公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙（可定制）。
产品材质:采用UL认可之尼龙PA66(防火等级UL94V-2)制成，(可定制）
工作温度:静态-40℃至100℃，或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃.
产品特性:特殊夹紧爪之设计，夹紧浪管抗拉力强，超快速拔插装卸，提高安装效率。
颜色种类:黑色、灰色，其它颜色可定做。
*非标规格可开模具*
|
|
Accommodated Pipes
|
Item.No.
|
Thread
|
AG Outer diameter(mm)
|
Thread Length
|
|
|
|
|
|
|
|
AD10.0
|
RTF-M10-10.0
|
M10 x 1.5
|
10
|
10
|
|
|
RTF-M12-10.0
|
M12 x 1.5
|
12
|
10
|
|
AD13.0
|
RTF-M16-13.0
|
M16 x 1.5
|
16
|
10
|
|
|
RTF-M18-13.0
|
M18 x 1.5
|
18
|
10
|
|
|
RTF-M20-13.0
|
M20 x 1.5
|
20
|
10
|
|
AD15.8
|
RTF-M16-15.8
|
M16 x 1.5
|
16
|
12.5
|
|
|
RTF-M18-15.8
|
M18 x 1.5
|
18
|
12.5
|
|
|
RTF-M20-15.8
|
M20 x 1.5
|
20
|
12.5
|
|
AD18.5
|
RTF-M16-18.5
|
M16 x 1.5
|
16
|
13
|
|
|
RTF-M18-18.5
|
M18 x 1.5
|
18
|
13
|
|
|
RTF-M20-18.5
|
M20 x 1.5
|
20
|
13
|
|
AD21.2
|
RTF-M20-21.2
|
M20 x 1.5
|
20
|
13
|
|
|
RTF-M24-21.2
|
M24 x 1.5
|
24
|
13
|
|
|
RTF-M25-21.2
|
M25 x 1.5
|
25
|
13
|
|
AD25.0
|
RTF-M25-25.0
|
M25 x 1.5
|
25
|
13
|
|
AD28.5
|
RTF-M25-28.5
|
M25 x 1.5
|
25
|
13
|
|
|
RTF-M27-28.5
|
M27 x 1.5
|
27
|
13
|
|
|
RTF-M30-28.5
|
M30 x 1.5
|
30
|
13
|
|
AD34.5
|
RTF-M32-34.5
|
M32 x 1.5
|
32
|
14.5
|
|
|
RTF-M36-34.5
|
M36 x 1.5
|
36
|
14.5
|
|
|
RTF-M40-34.5
|
M40 x 1.5
|
40
|
14.5
|
|
AD42.5
|
RTF-M40-42.5
|
M40 x 1.5
|
40
|
15
|
|
|
RTF-M50-42.5
|
M50 x 1.5
|
50
|
15
|
|
AD54.5
|
RTF-M50-54.5
|
M50 x 1.5
|
50
|
16
|
|
|
RTF-M63-54.5
|
M63 x 1.5
|
63
|
16
|
|
AD10.0
|
RTF-PG7-10.0
|
PG7
|
12.5
|
10
|
|
AD13.0
|
RTF-PG9-13.0
|
PG9
|
15.2
|
10
|
|
AD15.8
|
RTF-PG11-15.8
|
PG11
|
18.6
|
12.5
|
|
|
RTF-PG13.5-15.8
|
PG13.5
|
20.4
|
12.5
|
|
AD18.5
|
RTF-PG13.5-18.5
|
PG13.5
|
20.4
|
13
|
|
AD21.2
|
RTF-PG16-21.2
|
PG16
|
22.5
|
13
|
|
AD28.5
|
RTF-PG21-28.5
|
PG21
|
28.3
|
13
|
|
AD34.5
|
RTF-PG29-34.5
|
PG29
|
37
|
14.5
|
|
AD42.5
|
RTF-PG36-42.5
|
PG36
|
47
|
15
|
|
|
RTF-PG42-42.5
|
PG42
|
54
|
15
|
|
AD54.5
|
RTF-PG48-54.5
|
PG48
|
59.3
|
16
|
|
AD10.0
|
RTF-G1/4-10.0
|
G(PF) 1/4
|
13.1
|
10
|
|
AD13.0
|
RTF-G3/8-13.0
|
G(PF) 3/8
|
16.6
|
10
|
|
AD15.8
|
RTF-G3/8-15.8
|
G(PF) 3/8
|
16.6
|
12.5
|
|
AD18.5
|
RTF-G1/2-18.5
|
G(PF) 1/2
|
22.5
|
13
|
|
AD21.2
|
RTF-G1/2-21.2
|
G(PF) 1/2
|
22.5
|
13
|
|
AD25.0
|
RTF-G1/2-25.0
|
G(PF) 1/2
|
25
|
13
|
|
AD28.5
|
RTF-G3/4-28.5
|
G(PF)3/4
|
28.3
|
13
|
|
AD34.5
|
RTF-G1-34.5
|
G(PF)1
|
37
|
14.5
|
|
AD42.5
|
RTF-G1 1/4-42.5
|
G(PF)1 1/4
|
41.9
|
15
|
|
|
RTF-G1 1/2-42.5
|
G(PF)1 1/2
|
48
|
15
|
|
AD54.5
|
RTF-G1 1/2-54.5
|
G(PF)1 1/2
|
48
|
16
|
|
|
RTF-G2-54.5
|
G(PF)2
|
60
|
16
|
|
|
|
