螺牙规格：公制牙(Metric)、PG牙、G (PF)牙、NPT牙。

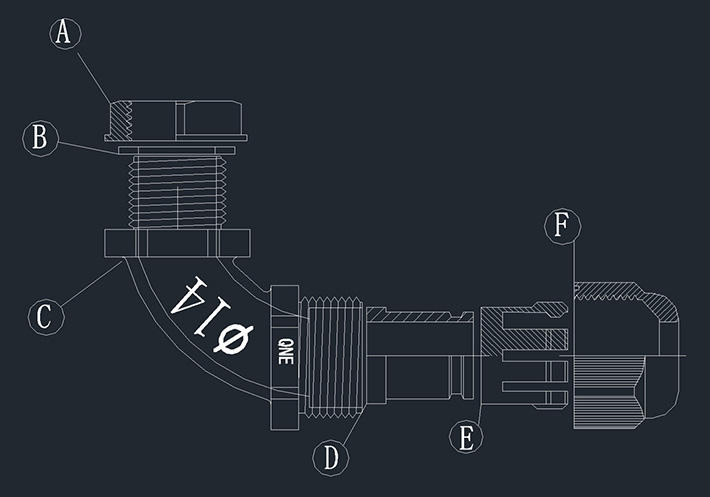

产品材质：A.C.E.F部分采用UL认可之尼龙PA66(防火等级UL94V-2)制成；(可定制UL认可的V-0防火等级尼龙原料)；B.D部分采用三元乙丙耐候橡胶制成。(可定制耐寒、耐高温橡胶；耐高酸碱、耐化学与抗腐蚀橡胶)。
保护等级：IP68
工作温度： -40℃至100℃，或瞬间可耐热至120℃

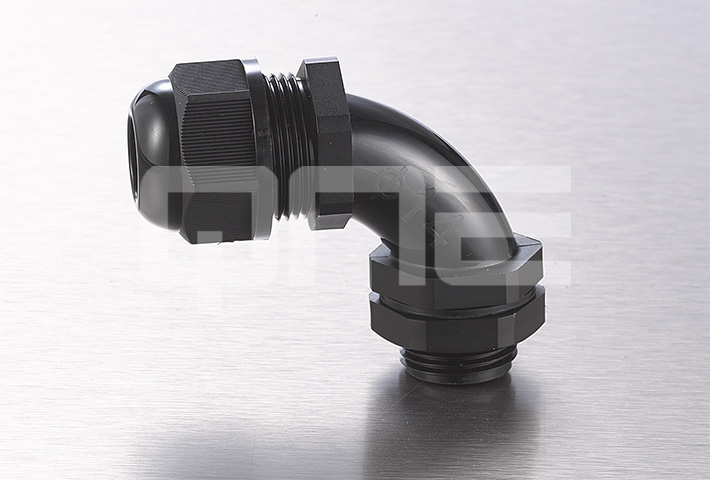

产品特性：特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。采用弯角造型，使用于弯角环境。
颜色种类：黑色、灰色，其它颜色可定做。
螺牙规格
Thread |
编号
Item.No. |
电缆范围
Cable Range
Ф(mm) |
螺纹外径
Thread O.D.
C1(mm) |
螺纹长度
Thread Length
C2(mm) |
扳手径
Spanner Size
A&F(mm) |
包装
Std.Pkg
(pcs) |
| M12×1.5 |
QECG-M12A-5.5-ST |
4-5.5mm |
12mm |
10mm |
22/22 |
50 |
| QECG-M12A-8-ST |
6-8mm |
12mm |
10mm |
22/22 |
50 |
| M16×1.5 |
QECG-M16A-7-ST |
4-7mm |
16mm |
10mm |
22/22 |
50 |
| QECG-M16A-10-ST |
6-10mm |
16mm |
10mm |
22/22 |
50 |
| M20×1.5 |
QECG-M20A-11 |
6-11mm |
20mm |
15mm |
27/27 |
50 |
| QECG-M20A-14 |
9-14mm |
20mm |
15mm |
27/27 |
50 |
|
QECG-M20AZ-13 |
10-13mm |
20mm |
15mm |
27/33 |
50 |
| QEECG-M20AZ-15 |
12-15mm |
20mm |
15mm |
27/33 |
50 |
| M25×1.5 |
QECG-M25A-16 |
10-16mm |
25mm |
15mm |
33/33 |
50 |
| QECG-M25A-18 |
13-18mm |
25mm |
15mm |
33/33 |
50 |
| M32×1.5 |
QECG-M32A-22 |
15-22mm |
32mm |
15mm |
41/42 |
10 |
| QECG-M32A-25 |
18-25mm |
32mm |
15mm |
41/42 |
10 |
| M40×1.5 |
QECG-M40A-26 |
20-26mm |
40mm |
20mm |
50/52 |
10 |
| QECG-M40A-31 |
24-31mm |
40mm |
20mm |
50/52 |
10 |
| M50×1.5 |
QECG-M50A-36 |
25-33mm |
50mm |
20mm |
50/52 |
10 |
| QECG-M50A-41 |
33-41mm |
50mm |
20mm |
50/52 |
10 |
|
