| 产品名称： |

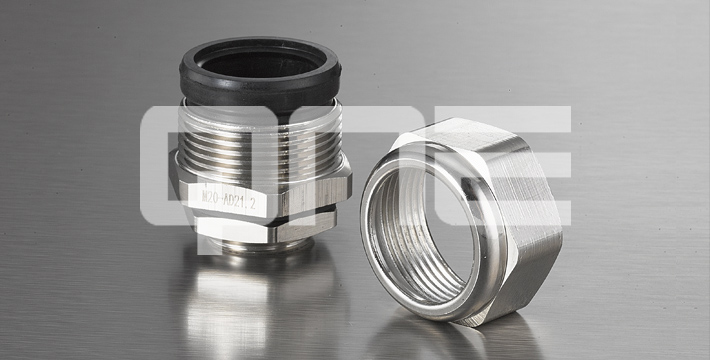

金属防水浪管接头 |
|
·螺牙规格：
·产品材质：
·保护等级：
·工作温度：
·产品特性：
|
公制牙(Metric)、PG牙、G牙、NPT牙。
A.C.F部分采用黄铜镀镍制成;
B.D部分采用三元乙丙(EPDM)耐候橡胶制成。(可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
IP68
静态-40℃至100℃,或瞬间可耐热至120℃;动态-20℃至80℃，或瞬间可耐热至100℃.
本款高性能防水尼龙浪管盒接头能完美地抗水压，是一款即使拉扯波纹管也能完全保持气密的产品。产品广泛地应用于移动式的自动化设备之防水、防油与气密的场合。
防水型浪管接头（防水IP68，抗强拉力，材质环保)
|
|
适配软管
|
编号
|
螺牙规格
|
螺纹外径
|
螺纹长度
|
包装
|
|
AD10.0
|
BCWTF-M12-10.0
|
M12 x 1.5
|
12
|
9
|
20
|
|
|
BCWTF-M16S-10.0-ST
|
M16 x 1.5
|
16
|
10
|
20
|
|
AD13.0
|
BCWTF-M16-13.0-ST
|
M16 x 1.5
|
16
|
10
|
20
|
|
|
BCWTF-M16-13.0
|
M16 x 1.5
|
16
|
15
|
20
|
|
|
BCWTF-M20M-13.0-ST
|
M20 x 1.5
|
20
|
10
|
20
|
|
|
BCWTF-M20M-13.0
|
M20 x 1.5
|
20
|
15
|
20
|
|
AD15.8
|
BCWTF-M16-15.8-ST
|
M16 x 1.5
|
16
|
10
|
20
|
|
|
BCWTF-M16-15.8
|
M16 x 1.5
|
16
|
15
|
20
|
|
|
BCWTF-M20-15.8-ST
|
M20 x 1.5
|
20
|
10
|
20
|
|
|
BCWTF-M20-15.8
|
M20 x 1.5
|
20
|
15
|
20
|
|
|
BCWTF-M22-15.8-ST
|
M22 x 1.5
|
22
|
10
|
20
|
|
|
BCWTF-M22-15.8
|
M22 x 1.5
|
22
|
15
|
20
|
|
|
BCWTF-M25-15.8-ST
|
M25 x 1.5
|
25
|
12
|
20
|
|
|
BCWTF-M25-15.8
|
M25 x 1.5
|
25
|
15
|
20
|
|
AD18.5
|
BCWTF-M16-18.5-ST
|
M16 x 1.5
|
16
|
10
|
20
|
|
|
BCWTF-M16-18.5
|
M16 x 1.5
|
16
|
15
|
20
|
|
|
BCWTF-M20-18.5-ST
|
M20 x 1.5
|
20
|
10
|
20
|
|
|
BCWTF-M20-18.5
|
M20 x 1.5
|
20
|
15
|
20
|
|
|
BCWTF-M22-18.5-ST
|
M22 x 1.5
|
22
|
10
|
20
|
|
|
BCWTF-M22-18.5
|
M22 x 1.5
|
22
|
15
|
20
|
|
|
BCWTF-M25-18.5-ST
|
M25 x 1.5
|
25
|
12
|
20
|
|
AD21.2
|
BCWTF-M20-21.2-ST
|
M20 x 1.5
|
20
|
10
|
10
|
|
|
BCWTF-M20-21.2
|
M20 x 1.5
|
20
|
15
|
10
|
|
|
BCWTF-M25-21.2-ST
|
M25 x 1.5
|
25
|
10
|
10
|
|
|
BCWTF-M25-21.2
|
M25 x 1.5
|
25
|
15
|
10
|
|
AD25.0
|
BCWTF-M25-25.0-ST
|
M25 x 1.5
|
25
|
10
|
10
|
|
|
BCWTF-M25-25.0
|
M25 x 1.5
|
25
|
15
|
10
|
|
AD26.2
|
BCWTF-M25-26.2-ST
|
M25 x 1.5
|
25
|
10
|
10
|
|
|
BCWTF-M25-26.2
|
M25 x 1.5
|
25
|
15
|
10
|
|
AD28.5
|
BCWTF-M25-28.5-ST
|
M25 x 1.5
|
25
|
10
|
10
|
|
|
BCWTF-M25-28.5
|
M25 x 1.5
|
25
|
15
|
10
|
|
AD34.5
|
BCWTF-M32-34.5-ST
|
M32 x 1.5
|
32
|
10
|
5
|
|
|
BCWTF-M32-34.5
|
M32 x 1.5
|
32
|
15
|
5
|
|
AD42.5
|
BCWTF-M40-42.5
|
M40 x 1.5
|
40
|
15
|
5
|
|
|
BCWTF-M50-42.5
|
M50 x 1.5
|
50
|
15
|
5
|
|
AD48
|
BCWTF-M50-48
|
M50 x 1.5
|
50
|
15
|
1
|
|
AD54.5
|
BCWTF-M50-54.5
|
M50 x 1.5
|
50
|
22
|
1
|
|
|
BCWTF-M63-54.5
|
M63 x 1.5
|
63
|
25
|
1
|
|
AD60
|
BCWTF-M50-60
|
M50 x 1.5
|
50
|
22
|
1
|
|
|
BCWTF-M50-60
|
M63 x 1.5
|
63
|
25
|
1
|
|
适配软管
|
编号
|
螺牙规
|
螺纹外径
|
螺纹长度
|
包装
|
|
AD10.0
|
BCWTF-PG7-10.0
|
PG7
|
12.5
|
9
|
20
|
|
|
BCWTF-PG9-10.0
|
PG9
|
15.2
|
9
|
20
|
|
AD13.0
|
BCWTF-PG11-13.0
|
PG11
|
18.6
|
10
|
20
|
|
AD15.8
|
BCWTF-PG13.5-15.8
|
PG13.5
|
20.4
|
10
|
20
|
|
|
BCWTF-PG16-15.8
|
PG16
|
22.5
|
10.8
|
20
|
|
AD18.5
|
BCWTF-PG13.5-18.5
|
PG13.5
|
20.4
|
10
|
20
|
|
|
BCWTF-PG16-18.5
|
PG16
|
22.5
|
10.8
|
20
|
|
AD21.2
|
BCWTF-PG16-21.2
|
PG16
|
22.5
|
13
|
10
|
|
|
BCWTF-PG21-21.2
|
PG21
|
28.3
|
13
|
10
|
|
AD28.5
|
BCWTF-PG21-28.5
|
PG21
|
28.3
|
13
|
10
|
|
AD34.5
|
BCWTF-PG29-34.5
|
PG29
|
37
|
13
|
5
|
|
AD42.5
|
BCWTF-PG36-42.5
|
PG36
|
47
|
13
|
5
|
|
AD54.5
|
BCWTF-PG48-54.5
|
PG48
|
59.3
|
16
|
1
|
|
AD60
|
BCWTF-PG48-60
|
PG48
|
59.3
|
16
|
1
|
|
适配软管
|
编号
|
螺牙规
|
螺纹外径
|
螺纹长度
|
包装
|
|
AD10.0
|
BCWTF-PF1/4-10.0
|
G(PF)1/4
|
13.1
|
9
|
20
|
|
AD13.0
|
BCWTF-PF3/8-13.0
|
G(PF)3/8
|
16.6
|
15
|
20
|
|
AD15.8
|
BCWTF-PF1/2-15.8
|
G(PF)1/2
|
20.9
|
15
|
20
|
|
AD18.5
|
BCWTF-PF1/2-18.5
|
G(PF)1/2
|
20.9
|
15
|
20
|
|
AD21.2
|
BCWTF-PF1/2-21.2
|
G(PF)1/2
|
20.9
|
15
|
10
|
|
|
BCWTF-PF3/4-21.2
|
G(PF)3/4
|
26.4
|
15
|
10
|
|
AD28.5
|
BCWTF-PF3/4-28.5
|
G(PF)3/4
|
26.4
|
15
|
10
|
|
AD34.5
|
BCWTF-PF1-34.5
|
G(PF)1
|
33.2
|
15
|
5
|
|
AD42.5
|
BCWTF-PF1 1/4-42.5
|
G(PF)1 1/4
|
41.9
|
15
|
5
|
|
AD54.5
|
BCWTF-PF1 1/2-54.5
|
G(PF)1 1/2
|
48
|
15
|
1
|
|
|
BCWTF-PF2-54.5
|
G(PF)2
|
60
|
15
|
1
|
|
AD60
|
BCWTF-PF1 1/2-60
|
G(PF)1 1/2
|
48
|
15
|
1
|
|
|
BCWTF-PF2-60
|
G(PF)2
|
60
|
15
|
1
|
|
|
|
