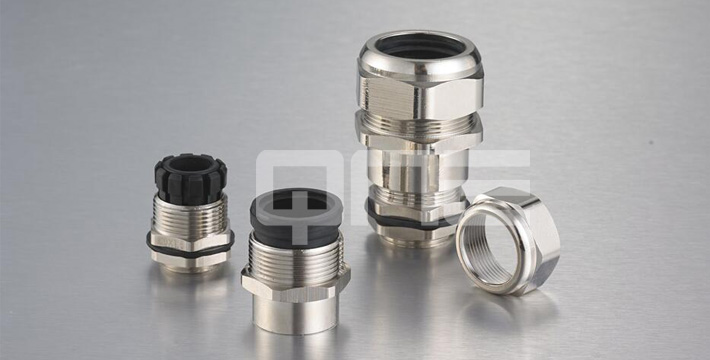

螺牙规格：公制牙(Metric)、PG牙、G (PF/BSP/PS)牙、NPT牙

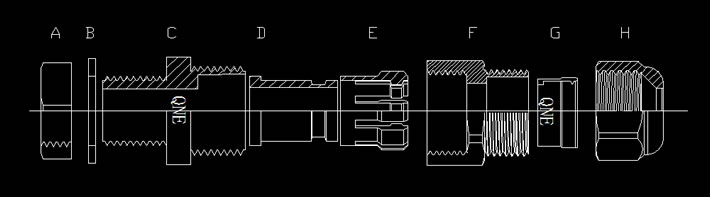

产品材质：A, C, F, H部分以黄铜镀镍制成；E部分以UL认可之尼龙PA66制成（防火等级UL94V-2）；
B, D, G部分采用三元乙丙耐候橡胶制成。
保护等级：IP68-10
工作温度：静态-40℃至100℃，或瞬间可耐热至120℃ 。（可定制-60℃至220℃）
产品特性：特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、
耐弱酸、酒精、油、油脂及一般溶剂。
注：特殊规格需要请联系工厂
|
螺牙规格
Thread
|
编号
Item NO.
|
电缆范围
Cable Range (mm)
|
适配软管
Accomodated Pipes
|
螺纹外径
Thread O.D.
D1 (mm)
|
螺纹长度
Thread Length
L1 (mm)
|
扳手径
Spanner Size
|
包装
Std Pkg
(pcs)
|
|
M12×1.5
|
M12-AD10.0
|
3-6
|
AD10.0
|
12
|
6
|
16
|
50
|
|
M14×1.5
|
M14-AD10.0
|
3-6
|
AD10.0
|
14
|
6
|
16
|
50
|
|
M16×1.5
|
M16-AD13.0
|
4-8
|
AD13.0
|
16
|
7
|
18
|
50
|
|
M18×1.5
|
M18-AD15.8
|
6-10
|
AD15.8
|
18
|
8
|
20
|
50
|
|
M20×1.5
|
M20-AD15.8
|
8-12
|
AD15.8
|
20
|
8
|
22
|
50
|
|
M20×1.5
|
M20-AD18.5
|
8-12
|
AD18.5
|
20
|
8
|
22
|
50
|
|
M20×1.5
|
M20-AD21.2
|
8-12
|
AD21.2
|
20
|
8
|
22
|
50
|
|
M22×1.5
|
M22-AD21.2
|
10-14
|
AD21.2
|
22
|
9
|
24
|
50
|
|
M24×1.5
|
M24-AD21.2
|
10-14
|
AD21.2
|
24
|
10
|
27
|
50
|
|
M25×1.5
|
M25-AD21.2
|
10-14
|
AD21.2
|
25
|
10
|
28
|
50
|
|
M25×1.5
|
M25-AD28.5
|
10-14
|
AD28.5
|
25
|
10
|
28
|
50
|
|
M27×1.5
|
M27-AD28.5
|
13-18
|
AD28.5
|
27
|
11
|
30
|
50
|
|
M30×1.5
|
M30-AD34.5
|
13-18
|
AD34.5
|
30
|
11
|
32
|
50
|
|
M32×1.5
|
M32-AD34.5
|
15-22
|
AD34.5
|
32
|
11
|
36
|
20
|
|
M33×1.5
|
M33-AD34.5
|
15-22
|
AD34.5
|
33
|
11
|
36
|
20
|
|
M36×1.5
|
M36-AD34.5
|
18-25
|
AD34.5
|
36
|
11
|
42
|
20
|
|
M40×1.5
|
M40-AD42.5
|
18-25
|
AD42.5
|
40
|
12
|
45
|
10
|
|
M50×1.5
|
M50-AD54.5
|
26-32
|
AD54.5
|
50
|
13
|
56
|
10
|
|
M63×1.5
|
M63-AD54.5
|
37-44
|
AD54.5
|
63
|
14
|
70
|
10
|
|
PG7
|
PG7-AD10.0
|
3-6
|
AD10.0
|
12.5
|
6
|
16
|
50
|
|
PG9
|
PG9-AD13.0
|
4-8
|
AD13.0
|
15.2
|
7
|
16
|
50
|
|
PG11
|
PG11-AD15.8
|
6-10
|
AD15.8
|
18.6
|
8
|
20
|
50
|
|
PG13.5
|
PG13.5-AD15.8
|
8-12
|
AD15.8
|
20.4
|
8
|
22
|
50
|
|
PG13.5
|
PG13.5-AD18.5
|
8-12
|
AD18.5
|
20.4
|
8
|
22
|
50
|
|
PG13.5
|
PG13.5-AD21.2
|
8-12
|
AD21.2
|
20.4
|
8
|
22
|
50
|
|
PG16
|
PG16-AD21.2
|
10-14
|
AD21.2
|
22.5
|
9
|
24
|
50
|
|
PG21
|
PG21-AD28.5
|
13-18
|
AD28.5
|
28.3
|
11
|
30
|
50
|
|
PG29
|
PG29-AD34.5
|
18-25
|
AD34.5
|
37
|
11
|
42
|
20
|
|
PG36
|
PG36-AD42.5
|
26-32
|
AD42.5
|
47
|
13
|
52
|
10
|
|
PG48
|
PG48-AD54.5
|
37-44
|
AD54.5
|
59.3
|
14
|
64
|
10
|
|
G(PF)1/4”
|
G(PF)1/4-AD10.0
|
3-6
|
AD10.0
|
13.2
|
6
|
16
|
50
|
|
G(PF)3/8”
|
G(PF)3/8-AD13.0
|
4-8
|
AD13.0
|
16.5
|
7
|
18
|
50
|
|
G(PF)1/2”
|
G(PF)1/2-AD15.8
|
8-12
|
AD15.8
|
21.3
|
8
|
22
|
50
|
|
G(PF)1/2”
|
G(PF)1/2-AD18.5
|
8-12
|
AD18.5
|
21.3
|
8
|
22
|
50
|
|
G(PF)1/2”
|
G(PF)1/2-AD21.2
|
8-12
|
AD21.2
|
21.3
|
8
|
22
|
50
|
|
G(PF)3/4”
|
G(PF)3/4-AD28.5
|
13-18
|
AD28.5
|
26.6
|
11
|
30
|
50
|
|
G(PF)1”
|
G(PF)1-AD28.5
|
15-22
|
AD28.5
|
33.4
|
11
|
36
|
20
|
|
G(PF)1 1/4”
|
G(PF)1 1/4-AD34.5
|
22-28
|
AD34.5
|
42.1
|
12
|
48
|
10
|
|
G(PF)1 1/2”
|
G(PF)1 1/2-AD42.5
|
26-32
|
AD42.5
|
47.8
|
13
|
52
|
10
|
|
G(PF)2”
|
G(PF)2-AD54.5
|
37-44
|
AD54.5
|
59.6
|
14
|
64
|
10
|
|
NPT3/8”
|
NPT3/8-AD13.0
|
4-8
|
AD13.0
|
16.5
|
7
|
18
|
50
|
|
NPT1/2”
|
NPT1/2-AD15.8
|
8-12
|
AD15.8
|
21.3
|
8
|
22
|
50
|
|
NPT1/2”
|
NPT1/2-AD18.5
|
8-12
|
AD18.58
|
21.3
|
8
|
22
|
50
|
|
NPT1/2”
|
NPT1/2-AD21.2
|
8-12
|
AD21.2
|
21.3
|
8
|
22
|
50
|
|
NPT3/4”
|
NPT3/4-AD21.2
|
13-18
|
AD21.2
|
26.6
|
11
|
30
|
50
|
|
NPT3/4”
|
NPT3/4-AD28.5
|
13-18
|
AD28.5
|
26.6
|
11
|
30
|
50
|
|
NPT1”
|
NPT1-AD34.5
|
15-22
|
AD34.5
|
33.4
|
11
|
36
|
20
|
|
