•Thread: Metric, PG, G(PF), and NPT thread
•Materials: 304 Stainless steel for lock nut, body, sealing nut, UL approved Nylon PA66 (Flammability UL 94V-2) for claw, EPDM rubber for washer and seal parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
•Protection degree: IP66
•Working temperature: -40℃ to 100℃

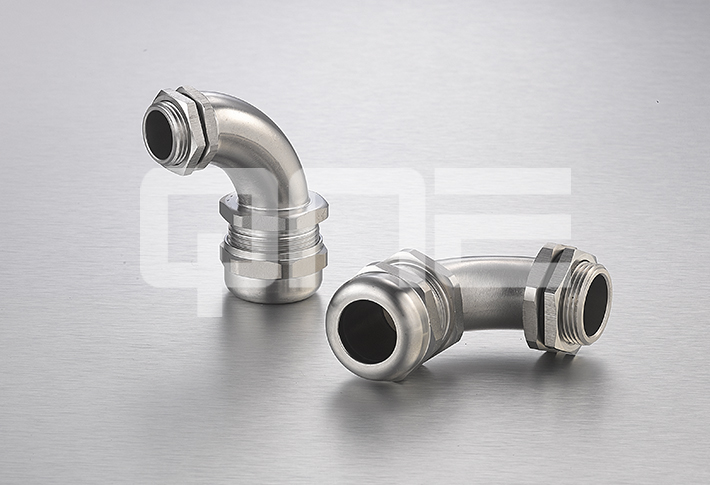

•Features: 90° Elbow Stainless Steel Cable Gland is a best cable entry system which is used for that the cable is run in parallel to the housing wall and protect the cable jacket from the bending area. The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
螺牙规格
Thread
|
产品编号
Item.No.
|
电缆范围
Cable Range
(mm)
|
螺纹外径
Thread O.D.
(mm)
|
螺纹长度
Thread Length
(mm)
|
扳手径(螺母/螺帽)
Spanner Size
(mm)
|
包装
Std.Pkg
(pcs)
|
|
M12×1.5
|
SSCG-90°-M12-5.5
|
3-5.5
|
12
|
8
|
17/17
|
10
|
|
SSCG-90°-M12-8
|
4.5-8
|
12
|
8
|
17/17
|
10
|
|
M16×1.5
|
SSCG-90°-M16-10
|
6-10
|
16
|
9
|
22/20
|
10
|
|
M20×1.5
|
SSCG-90°-M20S-12.5
|
6-12
|
20
|
9.5
|
24/24
|
10
|
|
SSCG-90°-M20-14
|
9-14
|
20
|
9.5
|
25/25
|
10
|
|
M25×1.5
|
SSCG-90°-M25S-14
|
9-14
|
25
|
12
|
30/25
|
10
|
|
SSCG-90°-M25-18
|
13-18
|
25
|
12
|
30/30
|
10
|
|
M32×1.5
|
SSCG-90°-M32-25
|
18-25
|
32
|
12.5
|
40/40
|
10
|
|
M40×1.5
|
SSCG-90°-M40-31
|
24-30
|
40
|
15
|
50/50
|
5
|
|
M50×1.5
|
SSCG-90°-M50-41
|
31-41
|
50
|
15
|
59/59
|
5
|
|
M63×1.5
|
SSCG-90°-M63-45
|
35-45
|
63
|
17
|
67/65
|
1
|
|
