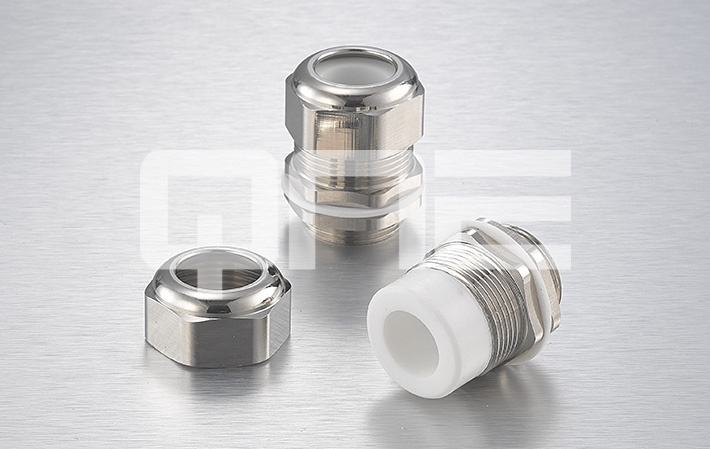

Thread: Metric, PG, G(PF), and NPT thread

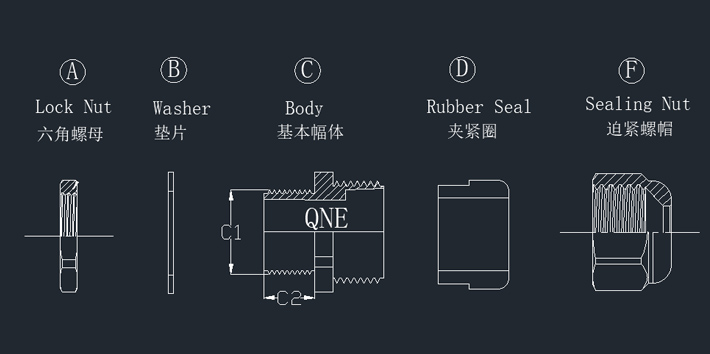

Materials：Brass with nickel plated for A. C. F parts, special high temperature resistance rubber for B. D parts. (Accept to make super quality high temperature resistance rubber).
Working temperature: -50℃ to 180℃;（-60℃至220℃ is available upon request）
Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
螺牙规格
Thread
|
编号
Item.No.
|
电缆范围
Cable RangeФ(mm)
|
螺纹外径
Thread O.D.
C1(mm)
|
螺纹长度
Thread Length
C2(mm)
|
扳手径
Spanner Size F&A
(mm)
|
包装
Std.Pkg
(pcs)
|
|
M6x1
|
HT-BCG-M6 -3.0
|
2-3.0
|
6
|
5
|
9/9
|
20
|
|
M8x1.25
|
HT-BCG-M8 -5
|
3-4.8
|
8
|
5.5
|
11/11
|
20
|
|
M10 x 1.5
|
HT-BCG-M10 -6.5
|
3-6.5
|
10
|
7
|
14/14
|
20
|
|
M12x1.5
|
HT-BCG-M12S-6.5
|
3-6.5
|
12
|
7
|
14/14
|
20
|
|
HT-BCG-M12-5.5
|
3-5.5
|
12
|
8
|
18/18
|
10
|
|
HT-BCG-M12-7.8
|
4.5-8
|
12
|
8
|
18/18
|
10
|
|
HT-BCG-M12S-6-L
|
3-6.5
|
12
|
15
|
14/14
|
20
|
|
HT-BCG-M12-5.5-L
|
3-5.5
|
12
|
15
|
18/18
|
10
|
|
HT-BCG-M12-7.8-L
|
4.5-8
|
12
|
15
|
18/18
|
10
|
|
M16 x 1.5
|
HT-BCG-M16S-5.5
|
3-5.5
|
16
|
8
|
18/18
|
10
|
|
HT-BCG-M16S-7.8
|
4.5-8
|
16
|
8
|
18/18
|
10
|
|
HT-BCG-M16-7
|
4-7
|
16
|
8
|
22/22
|
10
|
|
HT-BCG-M16-10
|
6-10
|
16
|
8
|
22/22
|
10
|
|
HT-BCG-M16S-5.5-L
|
3-5.5
|
16
|
15
|
18/18
|
10
|
|
HT-BCG-M16S-7.8-L
|
4.5-8
|
16
|
15
|
18/18
|
10
|
|
HT-BCG-M16-7-L
|
4-7
|
16
|
15
|
22/22
|
10
|
|
HT-BCG-M16-10-L
|
6-10
|
16
|
15
|
22/22
|
10
|
|
M20 x 1.5
|
HT-BCG-M20S-8.8
|
4-8.8
|
20
|
9.5
|
24/24
|
10
|
|
HT-BCG-M20S-12.5
|
7-12.5
|
20
|
9.5
|
24/24
|
10
|
|
HT-BCG-M20-11
|
7-11
|
20
|
9.5
|
25/25
|
10
|
|
HT-BCG-M20-14
|
9-14
|
20
|
9.5
|
25/25
|
10
|
|
HT-BCG-M20S-8.8-L
|
4-8.8
|
20
|
15
|
24/24
|
10
|
|
HT-BCG-M20S-12.5-L
|
7-12.5
|
20
|
15
|
24/24
|
10
|
|
HT-BCG-M20-11-L
|
7-11
|
20
|
15
|
25/25
|
10
|
|
HT-BCG-M20-14-L
|
9-14
|
20
|
15
|
25/25
|
10
|
|
M25 x 1.5
|
HT-BCG-M25S-11
|
7-11
|
25
|
12
|
25/25
|
10
|
|
HT-BCG-M25S-14
|
9-14
|
25
|
12
|
25/25
|
10
|
|
HT-BCG-M25-16
|
10-16
|
25
|
12
|
30/30
|
10
|
|
HT-BCG-M25-18
|
14-18
|
25
|
12
|
30/30
|
10
|
|
HT-BCG-M25S-11-L
|
7-11
|
25
|
15
|
25/25
|
10
|
|
HT-BCG-M25S-14-L
|
9-14
|
25
|
15
|
25/25
|
10
|
|
HT-BCG-M25-16-L
|
10-16
|
25
|
15
|
30/30
|
10
|
|
HT-BCG-M25-18-L
|
14-18
|
25
|
15
|
30/30
|
10
|
|
M32x 1.5
|
HT-BCG-M32-22
|
16-22
|
32
|
12.5
|
40/40
|
10
|
|
HT-BCG-M32-25
|
18-25
|
32
|
12.5
|
40/40
|
10
|
|
HT-BCG-M32-22-L
|
16-22
|
32
|
15
|
40/40
|
10
|
|
HT-BCG-M32-25-L
|
18-25
|
32
|
15
|
40/40
|
10
|
|
M40x 1.5
|
HT-BCG-M40-26
|
21-26
|
40
|
15
|
50/50
|
10
|
|
HT-BCG-M40-31
|
24-31
|
40
|
15
|
50/50
|
10
|
|
HT-BCG-M40-26-L
|
21-26
|
40
|
20
|
50/50
|
10
|
|
HT-BCG-M40-31-L
|
24-31
|
40
|
20
|
50/50
|
10
|
|
M50x 1.5
|
HT-BCG-M50 -33
|
25-33
|
50
|
15
|
59/59
|
5
|
|
HT-BCG-M50-41
|
31-41
|
50
|
15
|
59/59
|
5
|
|
HT-BCG-M50-33-L
|
25-33
|
50
|
22
|
59/59
|
5
|
|
HT-BCG-M50-41-L
|
31-41
|
50
|
22
|
59/59
|
5
|
|
M63 x 1.5
|
HT-BCG-M63 -45
|
35-45
|
63
|
17
|
68/68
|
1
|
|
M63 x 1.5
|
HT-BCG-M63L-46
|
39-46
|
63
|
17
|
75/75
|
1
|
|
M63 x 1.5
|
HT-BCG-M63L-51
|
44-51
|
63
|
17
|
75/75
|
1
|
|
M75 x 2
|
HT-BCG-M75 -56
|
50-56
|
75
|
22
|
93/93
|
1
|
|
M75x2
|
HT-BCG-M75 -66
|
56-66
|
75
|
22
|
93/93
|
1
|
|
M80 x 2
|
HT-BCG-M80 -56
|
50-56
|
80
|
22
|
93/93
|
1
|
|
M80x2
|
HT-BCG-M80 -66
|
56-66
|
80
|
22
|
93/93
|
1
|
|
M90x2
|
HT-BCG-M90 -68
|
58-68
|
90
|
24
|
110/110
|
1
|
|
M90x2
|
HT-BCG-M90 -77
|
66-77
|
90
|
24
|
110/110
|
1
|
|
M100 x 2
|
HT-BCG-M100 -68
|
58-68
|
100
|
24
|
110/110
|
1
|
|
M100x2
|
HT-BCG-M100 -77
|
66-77
|
100
|
24
|
110/110
|
1
|
螺牙规格
Thread
|
编号
Item.No.
|
电缆范围
Cable RangeФ(mm)
|
螺纹外径
Thread O.D.
C1(mm)
|
螺纹长度
Thread Length
C2(mm)
|
扳手径
Spanner Size F&A
(mm)
|
包装
Std.Pkg
(pcs)
|
|
PG7
|
HT-BCG-PG7S-6.5
|
3-6.5
|
12.5
|
7
|
14/14
|
20
|
|
HT-BCG-PG7-5.5
|
3-5.5
|
12.5
|
8
|
18/18
|
10
|
|
HT-BCG-PG7-7.8
|
4.5-8
|
12.5
|
8
|
18/18
|
10
|
|
HT-BCG-PG7S-5.5-L
|
3-6.5
|
12.5
|
15
|
14/14
|
20
|
|
HT-BCG-PG7-5.5-L
|
3-5.5
|
12.5
|
15
|
18/18
|
10
|
|
HT-BCG-PG7-7.8-L
|
4.5-8
|
12.5
|
15
|
18/18
|
10
|
|
PG9
|
HT-BCG-PG9 -5.5
|
3-5.5
|
15.2
|
8
|
18/18
|
10
|
|
HT-BCG-PG9-7.8
|
4.5-8
|
15.2
|
8
|
18/18
|
10
|
|
HT-BCG-PG9-5.5-L
|
3-5.5
|
15.2
|
15
|
18/18
|
10
|
|
HT-BCG-PG9-7.8-L
|
4.5-8
|
15.2
|
15
|
18/18
|
10
|
|
PG11
|
HT-BCG-PG11-7
|
4-7
|
18.6
|
9
|
22/22
|
10
|
|
HT-BCG-PG11-10
|
6-10
|
18.6
|
9
|
22/22
|
10
|
|
HT-BCG-PG11-7-L
|
4-7
|
18.6
|
15
|
22/22
|
10
|
|
HT-BCG-PG11-10-L
|
6-10
|
18.6
|
15
|
22/22
|
10
|
|
PG13.5
|
HT-BCG-PG13.5-8.8
|
4-8.8
|
20.4
|
9.5
|
24/24
|
10
|
|
HT-BCG-PG13.5-12.5
|
7-12.5
|
20.4
|
9.5
|
24/24
|
10
|
|
HT-BCG-PG13.5-8.8-L
|
4-8.8
|
20.4
|
15
|
24/24
|
10
|
|
HT-BCG-PG13.5-12.5-L
|
7-12.5
|
20.4
|
15
|
24/24
|
10
|
|
PG16
|
HT-BCG-PG16-11
|
46214
|
22.5
|
9.5
|
25/25
|
10
|
|
HT-BCG-PG16-14
|
46279
|
22.5
|
9.5
|
25/25
|
10
|
|
HT-BCG-PG16-11-L
|
46214
|
22.5
|
15
|
25/25
|
10
|
|
HT-BCG-PG16-14-L
|
46279
|
22.5
|
15
|
25/25
|
10
|
|
PG21
|
HT-BCG-PG21-16
|
10-16
|
28.3
|
12
|
30/30
|
10
|
|
HT-BCG-PG21-18
|
14-18
|
28.3
|
12
|
30/30
|
10
|
|
HT-BCG-PG21-16-L
|
10-16
|
28.3
|
15
|
30/30
|
10
|
|
HT-BCG-PG21-18-L
|
14-18
|
28.3
|
15
|
30/30
|
10
|
|
PG29
|
HT-BCG-PG29-22
|
16-22
|
37
|
12.5
|
40/40
|
10
|
|
HT-BCG-PG29-25
|
18-25
|
37
|
12.5
|
40/40
|
10
|
|
HT-BCG-PG29-22-L
|
16-22
|
37
|
15
|
40/40
|
10
|
|
HT-BCG-PG29-25-L
|
18-25
|
37
|
15
|
40/40
|
10
|
|
PG36
|
HT-BCG-PG36-26
|
21-26
|
47
|
15
|
50/50
|
10
|
|
HT-BCG-PG36-31
|
24-31
|
47
|
15
|
50/50
|
10
|
|
PG42
|
HT-BCG-PG42-33
|
25-33
|
54
|
15
|
59/59
|
10
|
|
HT-BCG-PG42-41
|
31-41
|
54
|
15
|
59/59
|
10
|
|
PG48
|
HT-BCG-PG48-45
|
35-45
|
59.3
|
17
|
68/68
|
5
|
螺牙规格
Thread
|
编号
Item.No.
|
电缆范围
Cable RangeФ(mm)
|
螺纹外径
Thread O.D.
C1(mm)
|
螺纹长度
Thread Length
C2(mm)
|
扳手径
Spanner Size F&A
(mm)
|
包装
Std.Pkg
(pcs)
|
|
G（PF）1/4
|
HT-BCG-PF 1/4 -5.5
|
3-5.5
|
13.1
|
8
|
17/17
|
10
|
|
HT-BCG-PF1/4 -7.8
|
4.5-8
|
13.1
|
8
|
17/17
|
10
|
|
G（PF）3/8
|
HT-BCG-PF 3/8-7
|
4-7
|
16.6
|
9
|
22/22
|
10
|
|
HT-BCG-PF3/8-10
|
6-10
|
16.6
|
9
|
22/22
|
10
|
|
G（PF）1/2
|
HT-BCG-PF 1/2-8.8
|
4-8.8
|
20.9
|
9.5
|
24/24
|
10
|
|
HT-BCG-PF1/2-12.5
|
7-12.5
|
20.9
|
9.5
|
24/24
|
10
|
|
HT-BCG-PF1/2-11
|
7-11
|
20.9
|
9.5
|
25/25
|
10
|
|
HT-BCG-PF1/2-14
|
9-14
|
20.9
|
9.5
|
25/25
|
10
|
|
G（PF）3/4
|
HT-BCG-PF 3/4-16
|
10-16
|
26.4
|
12
|
30/30
|
10
|
|
HT-BCG-PF3/4-18
|
14-18
|
26.4
|
12
|
30/30
|
10
|
|
G（PF）1
|
HT-BCG-PF 1-22
|
16-22
|
33.2
|
12.5
|
40/40
|
10
|
|
HT-BCG-PF1-25
|
18-25
|
33.2
|
12.5
|
40/40
|
10
|
|
G（PF）1 1/4
|
HT-BCG-PF1 1/4-26
|
21-26
|
41.9
|
15
|
50/50
|
10
|
|
HT-BCG-PF11/4-31
|
24-31
|
41.9
|
15
|
50/50
|
10
|
|
G（PF）11/2
|
HT-BCG-PF1 1/2-33
|
25-33
|
48
|
15
|
59/59
|
10
|
|
HT-BCG-PF11/2-41
|
31-41
|
48
|
15
|
59/59
|
10
|
|
G（PF）2
|
HT-BCG-PF 2-45
|
35-45
|
60
|
68/68
|
5
|
|
螺牙规格
Thread
|
编号
Item.No.
|
电缆范围
Cable RangeФ(mm)
|
螺纹外径
Thread O.D.
C1(mm)
|
螺纹长度
Thread Length
C2(mm)
|
扳手径
Spanner Size F&A
(mm)
|
包装
Std.Pkg
(pcs)
|
|
NPT1/4
|
HT-BCG-NPT 1/4 -5.5
|
3-5.5
|
13.1
|
8
|
17
|
10
|
|
HT-BCG-NPT1/4 -7.8
|
4.5-8
|
13.1
|
8
|
17
|
10
|
|
NPT3/8
|
HT-BCG-NPT 3/8-7
|
4-7
|
16.6
|
9
|
22
|
10
|
|
HT-BCG-NPT3/8-10
|
6-10
|
16.6
|
9
|
22
|
10
|
|
NPT1/2
|
HT-BCG-NPT 1/2-8.8
|
4-8.8
|
20.9
|
9.5
|
24
|
10
|
|
HT-BCG-NPT1/2-12.5
|
7-12.5
|
20.9
|
9.5
|
24
|
10
|
|
HT-BCG-NPT1/2-11
|
7-11
|
20.9
|
9.5
|
25
|
10
|
|
HT-BCG-NPT1/2-14
|
9-14
|
20.9
|
9.5
|
25
|
10
|
|
NPT3/4
|
HT-BCG-NPT 3/4-16
|
10-16
|
26.4
|
12
|
30
|
10
|
|
HT-BCG-NPT3/4-18
|
14-18
|
26.4
|
12
|
30
|
10
|
|
NPT1
|
HT-BCG-NPT 1-22
|
16-22
|
33.2
|
12.5
|
40
|
10
|
|
HT-BCG-NPT1-25
|
18-25
|
33.2
|
12.5
|
40
|
10
|
|
NPT1 1/4
|
HT-BCG-NPT 1 1/4-26
|
21-26
|
41.9
|
15
|
50
|
10
|
|
HT-BCG-NPT1 1/4-31
|
24-31
|
41.9
|
15
|
50
|
10
|
|
NPT1 1/2
|
HT-BCG-NPT 1 1/2-33
|
25-33
|
48
|
15
|
59
|
10
|
|
HT-BCG-NPT1 1/2-41
|
31-41
|
48
|
15
|
59
|
10
|
|
NPT 2
|
HT-BCG-NPT 2-45
|
35-45
|
60
|
17
|
68
|
5
|
|
