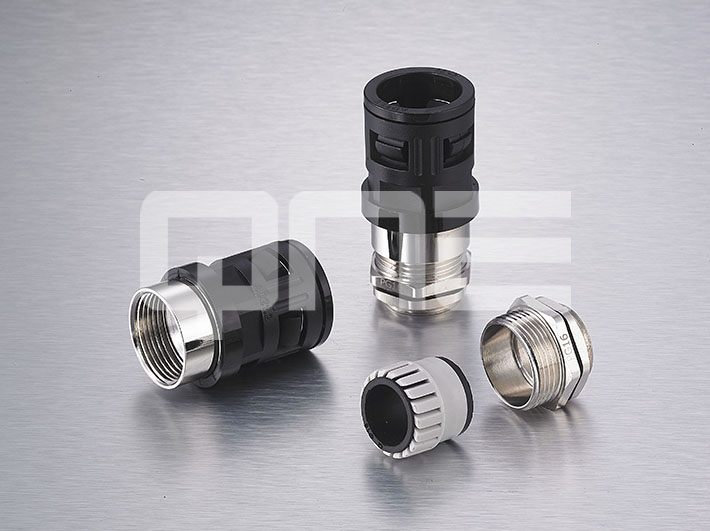

Thread: Metric, PG, G (PF), and NPT thread.
Materials: UL approved Nylon PA66 (Flammability UL 94V-2) with nickel-plated brass thread，EPDM rubber.
Working temperature: -40℃ to 100℃.
Features: Excellent impact resistance, high-intensive thread connection, fastening the cables firmly.
Color: Black(RAL9005),other color available upon request.
适配软管
Accommodated Pipes
|
编号
Item.No.
|
电缆范围
Cable Range
(mm)
|
螺牙规格
Thread
|
螺纹外径
Thread O.D.
AG(mm)
|
螺纹长度
Thread Length
GL(mm)
|
包装
Std.Pkg
(pcs)
|
|
AD18.5
|
BCGL-M20S-12-AD18.5
|
6-12
|
M20 x 1.5
|
20
|
8
|
20
|
|
AD21.2
|
BCGL-M20-14-AD21.2
|
10-14
|
M20 x 1.5
|
20
|
8
|
20
|
|
BCGL-M22-14-AD21.2
|
10-14
|
M22 x 1.5
|
22
|
8
|
20
|
|
BCGL-M24-14-AD21.2
|
10-14
|
M24 x 1.5
|
24
|
9
|
20
|
|
BCGL-M25S-14-AD21.2
|
10-14
|
M25 x 1.5
|
25
|
9
|
20
|
|
AD28.5
|
BCGL-M25-18-AD28.5
|
13-18
|
M25 x 1.5
|
25
|
9
|
20
|
|
AD34.5
|
BCGL-M32-25-AD34.5
|
18-25
|
M32 x 1.5
|
32
|
10
|
20
|
|
|
|
|
|
|
|
|
|
AD18.5
|
BCGL-PG13.5-12-AD18.5
|
6-12
|
PG13.5
|
20.4
|
8
|
20
|
|
AD21.2
|
BCGL-PG16-14-AD21.2
|
10-14
|
PG16
|
22.5
|
8
|
20
|
|
BCGL-PG19-14-AD21.2
|
10-14
|
PG19
|
24
|
9
|
20
|
|
