Thread: Metric, PG, G(PF), and NPT thread

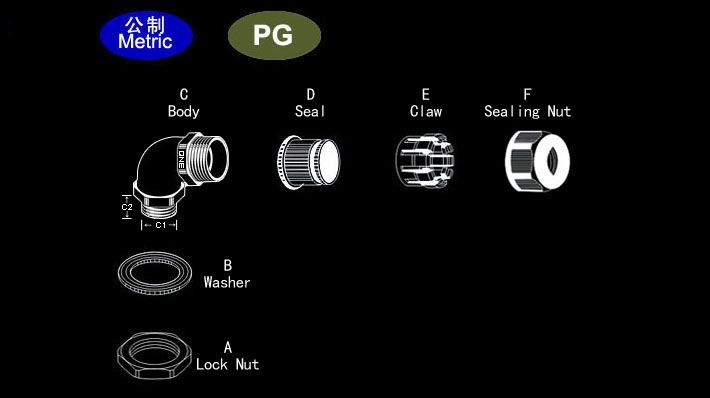

Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C. E. F parts, (Accept to make flammability UL 94V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/ alkali, etc ).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency. 90°design to protect cable from breakage.
Color: Black(RAL9005)、gray(RAL7035),other color available upon request.
|
|
Thread
|
Item.No.
|
Cable Range
|
Thread O.D.
|
Thread Length
|
Spanner Size
|
Std.Pkg
|
|
|
|
Ф(mm)
|
C1(mm)
|
C2(mm)
|
A&F(mm)
|
(pcs)
|
|
M12×1.5
|
ECG-M12A-5.5-ST
|
4-5.5mm
|
12mm
|
10mm
|
22/22
|
50
|
|
ECG-M12A-8-ST
|
6-8mm
|
12mm
|
10mm
|
22/22
|
50
|
|
M16×1.5
|
ECG-M16A-7-ST
|
4-7mm
|
16mm
|
10mm
|
22/22
|
50
|
|
ECG-M16A-10-ST
|
6-10mm
|
16mm
|
10mm
|
22/22
|
50
|
|
M20×1.5
|
ECG-M20A-11
|
6-11mm
|
20mm
|
15mm
|
27/27
|
50
|
|
ECG-M20A-14
|
9-14mm
|
20mm
|
15mm
|
27/27
|
50
|
|
|
ECG-M20AZ-13
|
10-13mm
|
20mm
|
15mm
|
27/33
|
50
|
|
ECG-M20AZ-15
|
12-15mm
|
20mm
|
15mm
|
27/33
|
50
|
|
M25×1.5
|
ECG-M25A-16
|
10-16mm
|
25mm
|
15mm
|
33/33
|
50
|
|
ECG-M25A-18
|
13-18mm
|
25mm
|
15mm
|
33/33
|
50
|
|
|
ECG-M25AZ-17
|
14-17mm
|
25mm
|
15mm
|
33/36
|
50
|
|
ECG-M25AZ-20
|
17-20mm
|
25mm
|
15mm
|
33/36
|
50
|
|
M32×1.5
|
ECG-M32A-22
|
15-22mm
|
32mm
|
15mm
|
41/42
|
10
|
|
ECG-M32A-25
|
18-25mm
|
32mm
|
15mm
|
41/42
|
10
|
|
|
ECG-M32AZ-23
|
15-23mm
|
32mm
|
15mm
|
41/46
|
10
|
|
ECG-M32AZ-26
|
20-26mm
|
32mm
|
15mm
|
41/46
|
10
|
|
M40×1.5
|
ECG-M40A-26
|
20-26mm
|
40mm
|
20mm
|
50/52
|
10
|
|
ECG-M40A-31
|
24-31mm
|
40mm
|
20mm
|
50/52
|
10
|
|
M50×1.5
|
ECG-M50A-36
|
25-33mm
|
50mm
|
20mm
|
50/52
|
10
|
|
ECG-M50A-41
|
33-41mm
|
50mm
|
20mm
|
50/52
|
10
|
|
PG7×1.5
|
ECG-PG7A-5.5-ST
|
4-5.5mm
|
12mm
|
10mm
|
22/22
|
50
|
|
ECG-PG7A-8-ST
|
6-8mm
|
12mm
|
10mm
|
22/22
|
50
|
|
G 1/2
|
ECG-PF1/2A-11
|
6-11mm
|
20.955mm
|
15mm
|
27/27
|
50
|
|
ECG-PF1/2A-14
|
9-14mm
|
20.955mm
|
15mm
|
27/27
|
50
|
|
|
ECG-PF1/2AZ-12
|
7-12mm
|
20.955mm
|
15mm
|
27/33
|
50
|
|
ECG-PF1/2AZ-15
|
10-15mm
|
20.955mm
|
15mm
|
27/33
|
50
|
|
