Thread: Metric, PG, G(PF), and NPT thread
Materials: Premium red copper, brass with nickel plated, UL approved Nylon PA66 (Flammability UL 94V-2), EPDM rubber and gasket. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Working temperature: -40℃ to 100℃

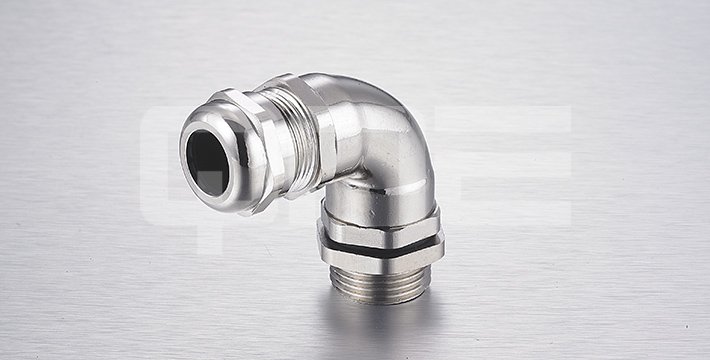

Features: 90° Elbow Brass cable gland is a best cable entry system which is used for that the cable is run in parallel to the housing wall and protect the cable jacket from the bending area. The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
螺牙规格
Thread
|
产品编号
Item.No.
|
电缆范围
Cable Range
(mm)
|
螺纹外径
Thread O.D.
(mm)
|
螺纹长度
Thread Length
(mm)
|
扳手径
Spanner Size
(mm)
|
包装
Std.Pkg
(pcs)
|
|
M12×1.5
|
EBCGL-M12-8
|
4.5-8
|
12
|
8
|
14/17
|
20
|
|
M16×1.5
|
EBCGL-M16S-8
|
4.5-8
|
16
|
8
|
17/18
|
20
|
|
EBCGL-M16-10
|
6-10
|
16
|
8
|
20/18
|
20
|
|
M20×1.5
|
EBCGL-M20M-10
|
6-10
|
20
|
8
|
17/22
|
20
|
|
EBCGL-M20S-12
|
7-12
|
20
|
8
|
22/22
|
20
|
|
EBCGL-M20-14
|
9-14
|
20
|
8
|
24/22
|
20
|
|
M25×1.5
|
EBCGL-M25M-14
|
9-14
|
25
|
9
|
24/27
|
20
|
|
EBCGL-M25S-16
|
12-16
|
25
|
9
|
27/27
|
20
|
|
EBCGL-M25-18
|
14-18
|
25
|
9
|
30/27
|
20
|
|
M32×1.5
|
EBCGL-M32S-18
|
14-18
|
32
|
10
|
30/35
|
10
|
|
EBCGL-M32-22
|
18-22
|
32
|
10
|
35/35
|
10
|
|
EBCGL-M32Z--25
|
20-25
|
32
|
10
|
40/35
|
10
|
|
M40×1.5
|
EBCGL-M40-30
|
22-30
|
40
|
11
|
45/45
|
10
|
|
M50×1.5
|
EBCGL-M50-38
|
32-38
|
50
|
13
|
57/55
|
10
|
|
