| 产品名称： |

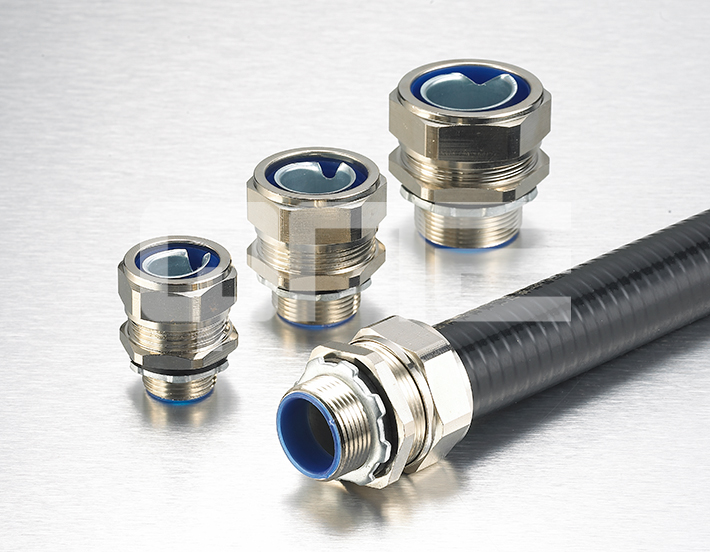

DPB-Ф金属软管（蛇管）接头（黄铜镀镍） |
·螺牙规格：公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙。
·产品材质：B,G部分为黄铜镀镍；A,C部分为铁，C,F部分为TPE；B部分三元乙丙橡胶
·保护等级：IP66
·工作温度：-40℃至100℃
·应用：连接金属软管，起到防水保护线缆的作用
|

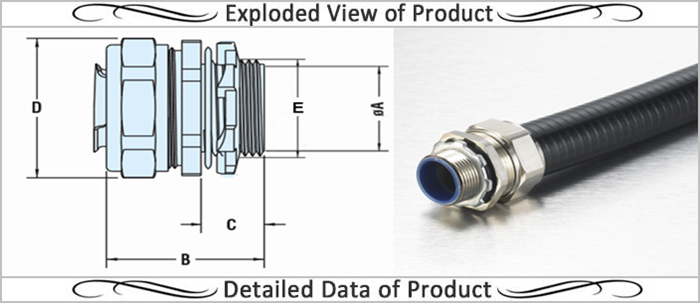

编号
Item No.
|
适配金属软管(mm)
Adapt to metal hose(mm)
|
适配金属软管(英寸)
Adapt to metal hose(Inch)
|
螺纹规格
Thread
|
螺纹长度
Thread Length （mm）
|
螺纹外径
Thread O.D.（mm）
|
扳手尺寸
Spanner Size（mm）
|
|
DPB-Ф6-M14
|
Ф6
|
3/16
|
M14×1.5
|
7
|
14
|
18
|
|
DPB-Ф8-M16
|
Ф8
|
5/16
|
M16×1.5
|
8
|
16
|
24
|
|
DPB-Ф10-M16
|
Ф10
|
1/4
|
M16×1.5
|
8
|
16
|
24
|
|
DPB-Ф13-M16
|
Ф13
|
3/8
|
M16×1.5
|
8
|
16
|
26
|
|
DPB-Ф13-M20
|
Ф13
|
3/8
|
M20×1.5
|
10
|
20
|
26
|
|
DPB-Ф16-M18
|
Ф16
|
1/2
|
M18×1.5
|
8
|
18
|
28
|
|
DPB-Ф16-M20
|
Ф16
|
1/2
|
M20×1.5
|
10
|
20
|
28
|
|
DPB-Ф16-M24
|
Ф16
|
1/2
|
M24×1.5
|
10
|
24
|
28
|
|
DPB-Ф20-M20
|
Ф20
|
3/4
|
M20×1.5
|
10
|
20
|
35
|
|
DPB-Ф20-M25
|
Ф20
|
3/4
|
M25×1.5
|
12
|
25
|
35
|
|
DPB-Ф20-M27
|
Ф20
|
3/4
|
M27×2.0
|
12
|
27
|
35
|
|
DPB-Ф20-M30
|
Ф20
|
3/4
|
M30×2.0
|
12
|
30
|
35
|
|
DPB-Ф25-M25
|
Ф25
|
1
|
M25×1.5
|
12
|
25
|
42
|
|
DPB-Ф25-M32
|
Ф25
|
1
|
M32×1.5
|
12
|
32
|
42
|
|
DPB-Ф25-M33
|
Ф25
|
1
|
M33×2.0
|
12
|
33
|
42
|
|
DPB-Ф25-M36
|
Ф25
|
1
|
M36×2.0
|
12
|
36
|
42
|
|
DPB-Ф32-M40
|
Ф32
|
1-1/4
|
M40×1.5
|
14
|
40
|
50
|
|
DPB-Ф32-M42
|
Ф32
|
1-1/4
|
M42×2.0
|
14
|
42
|
50
|
|
DPB-Ф32-M48
|
Ф32
|
1-1/4
|
M48×2.0
|
14
|
48
|
50
|
|
DPB-Ф38-M40
|
Ф38
|
1-1/2
|
M40×1.5
|
14
|
40
|
57
|
|
DPB-Ф38-M48
|
Ф38
|
1-1/2
|
M48×2.0
|
14
|
48
|
57
|
|
DPB-Ф38-M50
|
Ф38
|
1-1/2
|
M50×1.5
|
14
|
50
|
57
|
|
DPB-Ф51-M50
|
Ф51
|
2
|
M50×1.5
|
14
|
50
|
70
|
|
DPB-Ф51-M60
|
Ф51
|
2
|
M60×2.0
|
15
|
60
|
70
|
|
DPB-Ф51-M63
|
Ф51
|
2
|
M63×1.5
|
15
|
63
|
70
|
|
|
|
|
|
|
|
|
|
DPB-Ф6-PG7
|
Ф6
|
3/16
|
PG7
|
8
|
12.5
|
18
|
|
DPB-Ф8-PG9
|
Ф8
|
5/16
|
PG9
|
8
|
15.2
|
24
|
|
DPB-Ф10-PG9
|
Ф10
|
1/4
|
PG9
|
8
|
15.2
|
24
|
|
DPB-Ф13-PG11
|
Ф13
|
3/8
|
PG11
|
8
|
18.6
|
26
|
|
DPB-Ф13-PG13.5
|
Ф13
|
3/8
|
PG13.5
|
8
|
20.4
|
26
|
|
DPB-Ф16-PG13.5
|
Ф16
|
1/2
|
PG13.5
|
8
|
20.4
|
28
|
|
DPB-Ф16-PG16
|
Ф16
|
1/2
|
PG16
|
11
|
22.5
|
28
|
|
DPB-Ф20-PG21
|
Ф20
|
3/4
|
PG21
|
14
|
28.3
|
32
|
|
DPB-Ф25-PG29
|
Ф25
|
1
|
PG29
|
15
|
37
|
42
|
|
DPB-Ф32-PG29
|
Ф32
|
1-1/4
|
PG29
|
15
|
37
|
50
|
|
DPB-Ф38-PG36
|
Ф38
|
1-1/2
|
PG36
|
16
|
47
|
57
|
|
DPB-Ф38-PG42
|
Ф38
|
1-1/2
|
PG42
|
16
|
54
|
57
|
|
DPB-Ф51-PG48
|
Ф51
|
2
|
PG48
|
18
|
59.3
|
70
|
|
|
|
|
|
|
|
|
|
DPB-Ф6-G1/4
|
Ф6
|
3/16
|
G1/4
|
8
|
13.2
|
18
|
|
DPB-Ф8-G1/4
|
Ф8
|
5/16
|
G1/4
|
8
|
13.2
|
24
|
|
DPB-Ф10-G1/4
|
Ф10
|
1/4
|
G1/4
|
8
|
13.2
|
24
|
|
DPB-Ф13-G3/8
|
Ф13
|
3/8
|
G3/8
|
8
|
16.5
|
26
|
|
DPB-Ф16-G1/2
|
Ф16
|
1/2
|
G1/2
|
11
|
21.3
|
28
|
|
DPB-Ф20-G3/4
|
Ф20
|
3/4
|
G3/4
|
14
|
26.6
|
35
|
|
DPB-Ф25-G1
|
Ф25
|
1
|
G1
|
15
|
33.4
|
42
|
|
DPB-Ф32-G1-1/4
|
Ф32
|
1-1/4
|
G1-1/4
|
15
|
42.1
|
50
|
|
DPB-Ф38-G1-1/2
|
Ф38
|
1-1/2
|
G1-1/2
|
16
|
47.8
|
57
|
|
DPB-Ф51-G2
|
Ф51
|
2
|
G2
|
18
|
59.6
|
70
|
|
|
|
|
|
|
|
|
|
DPB-Ф6-NPT1/4
|
Ф6
|
3/16
|
NPT1/4
|
8
|
13.2
|
18
|
|
DPB-Ф8-NPT1/4
|
Ф8
|
5/16
|
NPT1/4
|
8
|
13.2
|
24
|
|
DPB-Ф10-NPT1/4
|
Ф10
|
1/4
|
NPT1/4
|
8
|
13.2
|
24
|
|
DPB-Ф13-NPT3/8
|
Ф13
|
3/8
|
NPT3/8
|
8
|
16.5
|
26
|
|
DPB-Ф16-NPT1/2
|
Ф16
|
1/2
|
NPT1/2
|
11
|
21.3
|
28
|
|
DPB-Ф20-NPT3/4
|
Ф20
|
3/4
|
NPT3/4
|
14
|
26.6
|
35
|
|
DPB-Ф25-NPT1
|
Ф25
|
1
|
NPT1
|
15
|
33.4
|
42
|
|
DPB-Ф32-NPT1-1/4
|
Ф32
|
1-1/4
|
NPT1-1/4
|
15
|
42.1
|
50
|
|
DPB-Ф38-G1-1/2
|
Ф38
|
1-1/2
|
NPT1-1/2
|
16
|
47.8
|
57
|
|
DPB-Ф51-NPT2
|
Ф51
|
2
|
NPT2
|
18
|
59.6
|
70
|
|
|
|
