Product Name

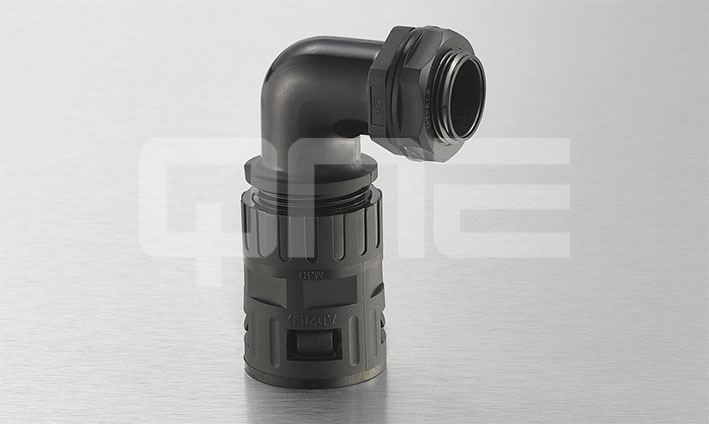

90°Elbow double fixed for cables and flexible pipes
Thread: Metric, PG, G (PF), and NPT thread

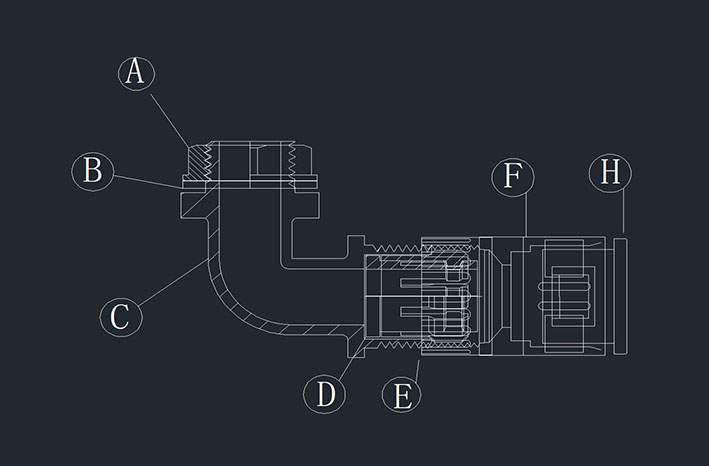

Materials: UL approved Halogen-Free Nylon PA66(Flammability UL 94V-2)for A.C.E.F.H parts;, (Accept to make flammability UL 94V-0 );Weather-resistant EPDM rubber for B.D parts. (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Working temperature: -40℃ to 100℃ in static state,or instantaneous heat resistance up to 120℃.
Product features: The corner shape is used in the corner environment. Can fasten cable and conduit at the same time.
Colours: Black(RAL9005)、gray(RAL7035),other color available upon request.
适配软管
Accommodated Pipes
编号
Item.No.
电缆范围
Cable Range
Ф(mm)
螺纹外径
Thread O.D.
螺纹长度
Thread Length
AD13
ITF-AD13+ECG-M12A-5.5-ST
4-5.5mm
12mm
10mm
ITF-AD13+ECG-M12A-8-ST
6-8mm
12mm
10mm
AD13
ITF-AD13+ECG-PG7A-5.5-ST
4-5.5mm
12.5 mm
10mm
ITF-AD13+ECG-PG7A-8-ST
6-8mm
12.5 mm
10mm
AD15.8
ITF-AD15.8+ECG-M16A-7-ST
4-7mm
16mm
10mm
ITF-AD15.8+ECG-M16A-10-ST
6-10mm
16mm
10mm
AD21.2
ITF-AD21.2+ECG-M20A-11
6-11mm
20mm
15mm
ITF-AD21.2+ECG-M20A-14
9-14mm
20mm
15mm
AD21.2
ITF-AD21.2+ECG-PG13.5A-11
6-11mm
20.4 mm
15mm
ITF-AD21.2+ECG-PG13.5A-14
9-14mm
20.4 mm
15mm
AD25.0
ITF-AD25.0+ECG-M25A-16
10-16mm
25mm
15mm
ITF-AD25.0+ECG-M25A-18
13-18mm
25mm
15mm
AD25.0
ITF-AD25.0+ECG-NPT1/2A-11
6-11mm
20.955mm
15mm
ITF-AD25.0+ECG-NPT1/2A-14
9-14mm
20.955mm
15mm
AD28.5
ITF-AD28.5+ECG-M25A-16
15-22mm
25mm
15mm
ITF-AD28.5+ECG-M25A-18
18-25mm
25mm
15mm
AD28.5
ITF-AD28.5+ECG-NPT1/2A-11
6-11mm
20.955mm
15mm
ITF-AD28.5+ECG-NPT1/2A-14
9-14mm
20.955mm
15mm
AD34.5
ITF-AD34.5+ECG-M32A-22
15-22mm
32mm
15mm
ITF-AD34.5+ECG-M32A-25
18-25mm
32mm
15mm
AD21.2
ITF-AD21.2+ECG-PF1/2A-11
6-11mm
20.955mm
15mm
ITF-AD21.2+ECG-PF1/2A-14
9-14mm
20.955mm
15mm
AD25.0
ITF-AD25.0+ECG-PF1/2AZ-12
7-12mm
20.955mm
15mm
ITF-AD25.0+ECG-PF1/2AZ-15
10-15mm
20.955mm
15mm
AD28.5
ITF-AD28.5+ECG-PF1/2AZ-12
7-12mm
20.955mm
15mm
ITF-AD28.5+ECG-PF1/2AZ-15
10-15mm
20.955mm
15mm
