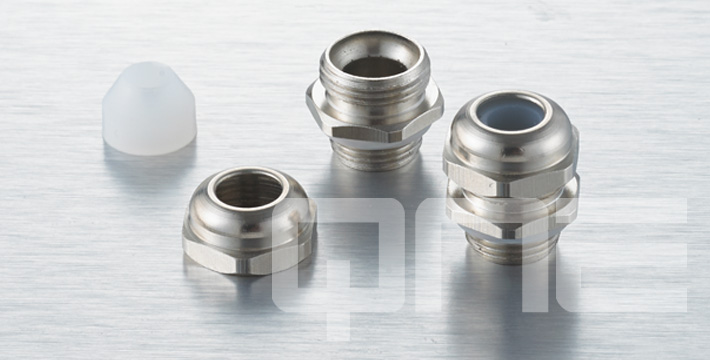

Product Name Specialized cable gland M12(LED lights)(UL)


Thread: Metric M12
Materials: Brass with nickel plated for C, F parts; resist high temperature silicon rubber for B, E parts;
Working temperature: -40℃ to 100℃(accept to make super rubber: resist high temperature -60℃ to 220℃)
Features: The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.

Specification Cable range Thread length Spanner Size
型号 穿线范围 螺纹长度 扳手
M12X1 3-6 6 16
M12X1.25 3-6 6 16
M12X1.5 3-6 6 16
