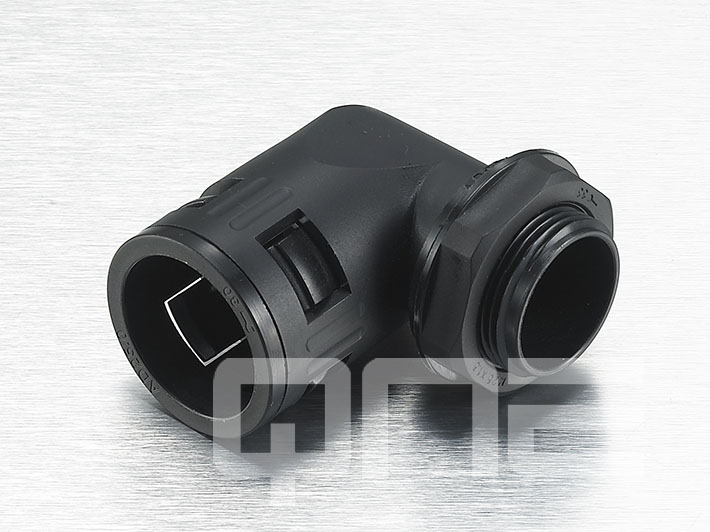

Product Name Right Angle Connector for Flexible Pipes

Thread: Metric and PG 、G (PF / BSP / PS)
Material: Nylon PA66
Working temperature: -40℃ to 100℃
Colour: Black, other color available upon request.
Features: Right angle connector is the fitting of flexible corrugated pipes, but accession equipment case at the body, can select for use thread insert imports and exports at interior electronic apparatus of thread too, only need the hose to insert the interface.

Accommodated Pipes

Item.No.

Thread

AG Outer diameter(mm)

Thread Length


AD10.0

RTF-M10-10.0

M10 x 1.5

10

10

RTF-M12-10.0

M12 x 1.5

12

10

AD13.0

RTF-M16-13.0

M16 x 1.5

16

10

RTF-M18-13.0

M18 x 1.5

18

10

RTF-M20-13.0

M20 x 1.5

20

10

AD15.8

RTF-M16-15.8

M16 x 1.5

16

12.5

RTF-M18-15.8

M18 x 1.5

18

12.5

RTF-M20-15.8

M20 x 1.5

20

12.5

AD18.5

RTF-M16-18.5

M16 x 1.5

16

13

RTF-M18-18.5

M18 x 1.5

18

13

RTF-M20-18.5

M20 x 1.5

20

13

AD21.2

RTF-M20-21.2

M20 x 1.5

20

13

RTF-M24-21.2

M24 x 1.5

24

13

RTF-M25-21.2

M25 x 1.5

25

13

AD25.0

RTF-M25-25.0

M25 x 1.5

25

13

AD28.5

RTF-M25-28.5

M25 x 1.5

25

13

RTF-M27-28.5

M27 x 1.5

27

13

RTF-M30-28.5

M30 x 1.5

30

13

AD34.5

RTF-M32-34.5

M32 x 1.5

32

14.5

RTF-M36-34.5

M36 x 1.5

36

14.5

RTF-M40-34.5

M40 x 1.5

40

14.5

AD42.5

RTF-M40-42.5

M40 x 1.5

40

15

RTF-M50-42.5

M50 x 1.5

50

15

AD54.5

RTF-M50-54.5

M50 x 1.5

50

16

RTF-M63-54.5

M63 x 1.5

63

16

AD10.0

RTF-PG7-10.0

PG7

12.5

10

AD13.0

RTF-PG9-13.0

PG9

15.2

10

AD15.8

RTF-PG11-15.8

PG11

18.6

12.5

RTF-PG13.5-15.8

PG13.5

20.4

12.5

AD18.5

RTF-PG13.5-18.5

PG13.5

20.4

13

AD21.2

RTF-PG16-21.2

PG16

22.5

13

AD28.5

RTF-PG21-28.5

PG21

28.3

13

AD34.5

RTF-PG29-34.5

PG29

37

14.5

AD42.5

RTF-PG36-42.5

PG36

47

15

RTF-PG42-42.5

PG42

54

15

AD54.5

RTF-PG48-54.5

PG48

59.3

16

AD10.0

RTF-G1/4-10.0

G(PF) 1/4

13.1

10

AD13.0

RTF-G3/8-13.0

G(PF) 3/8

16.6

10

AD15.8

RTF-G3/8-15.8

G(PF) 3/8

16.6

12.5

AD18.5

RTF-G1/2-18.5

G(PF) 1/2

22.5

13

AD21.2

RTF-G1/2-21.2

G(PF) 1/2

22.5

13

AD25.0

RTF-G1/2-25.0

G(PF) 1/2

25

13

AD28.5

RTF-G3/4-28.5

G(PF)3/4

28.3

13

AD34.5

RTF-G1-34.5

G(PF)1

37

14.5

AD42.5

RTF-G1 1/4-42.5

G(PF)1 1/4

41.9

15

RTF-G1 1/2-42.5

G(PF)1 1/2

48

15

AD54.5

RTF-G1 1/2-54.5

G(PF)1 1/2

48

16

RTF-G2-54.5

G(PF)2

60

16
